SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

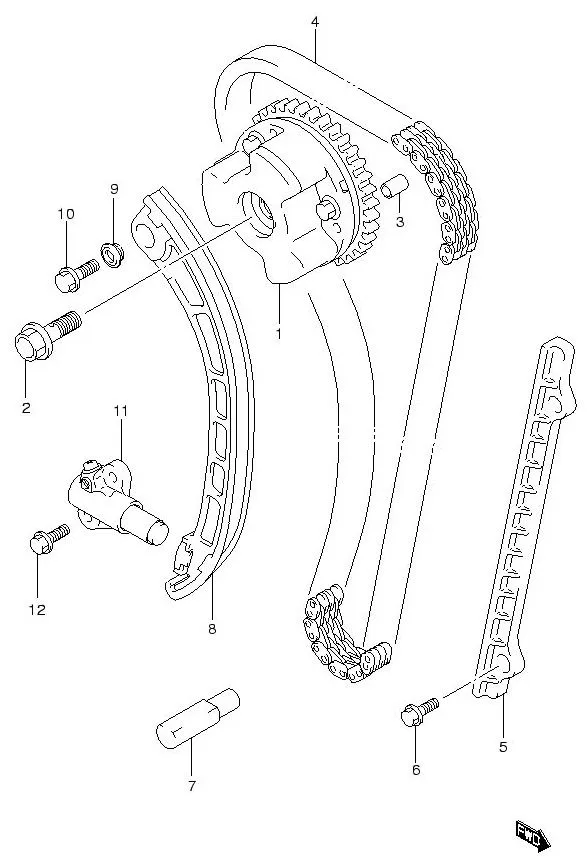

FIG.9 CAM CHAIN

FIG.9 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12740-54GE1-000 SPROCKET, CAMSHAFT TIMING 1 Rp2.929.000
2 12753-69GE1-000 BOLT 1 Rp43.000
3 09206-05001-000 PIN (3.4X5X10) 1 Rp11.500
4 12761-54G00-000 CHAIN, TIMING 1 Rp764.500
5 12771-61M00-000
SUB: 12771-54G01-000		 GUIDE, CHAIN 1 Rp199.500
6 12776-85FA0-000 BOLT 2 Rp39.000
7 12781-69G00-000
SUB: 12781B69G00N000		 JET 1 Rp24.500
8 12811-69G02-000 TENSIONER 1 Rp599.000
9 12812M73G10-000 SPACER 1 Rp13.000
10 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
11 12831-69G10-000
SUB: 12831-69G00-000		 ADJUSTER ASSY, TENSIONER 1 Rp872.500
12 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
