SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

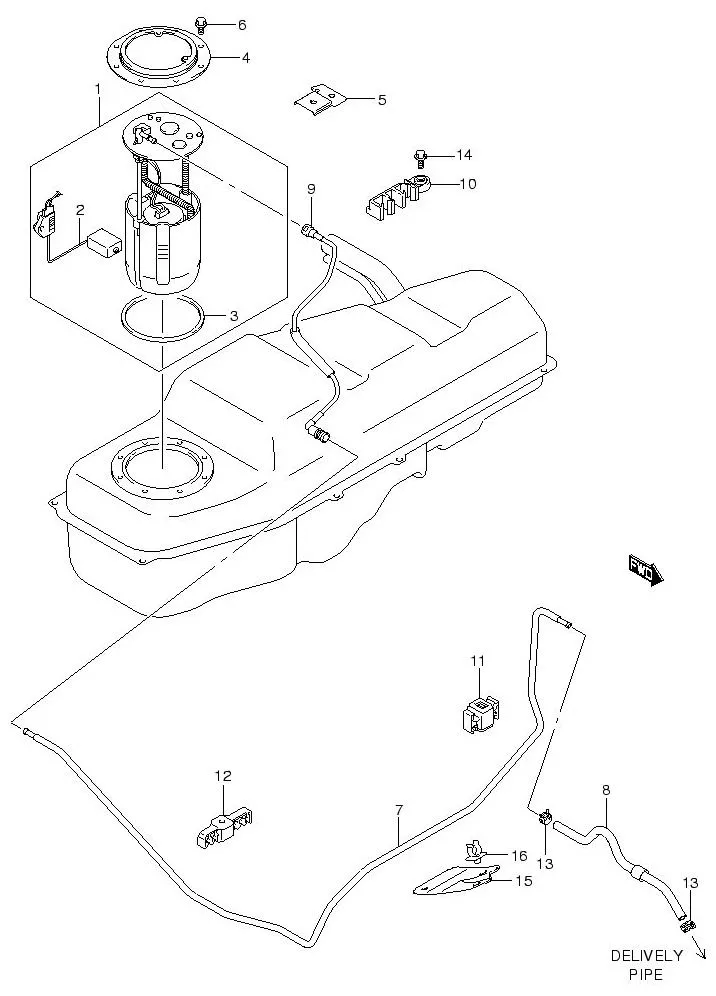

FIG.15 FUEL PUMP

FIG.15 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-80840-000 PUMP SET, FUEL 1 Rp8.700.000
2 34810-80J00-000 •GAUGE ASSY, FUEL LEVEL 1 Rp924.500
3 15111-80J00-000 •GASKET 1 Rp96.500
4 15121M61J00-000 PLATE 1 Rp23.500
5 DISCONTINUE
SUB: 15131-63J00-000		 BRACKET, EARTH 1 -
6 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 8 Rp21.500
7 15811-79J00-000
SUB: 15811B79J00N000		 PIPE, FUEL FEED 1 Rp174.500
8 15815-80JA0-000 HOSE, FUEL (FEED) 1 Rp344.000
9 15821-80J00-000 PIPE, FUEL (TANK SIDE) 1 Rp482.000
10 DISCONTINUE
SUB: 15824-80J00-000		 CLAMP 1 -
11 15882-79J00-000 CLAMP 1 Rp45.000
12 15892-65J00-000 CLAMP 4 Rp48.500
13 09401-11420-000 CLIP 2 Rp24.500
14 02162-0616A-000 SCREW 1 Rp3.000
15 DISCONTINUE
SUB: 15873-79J00-000		 COVER, FUEL PIPE 1 -
16 DISCONTINUE
SUB: 09403-10324-000		 CLAMP 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
