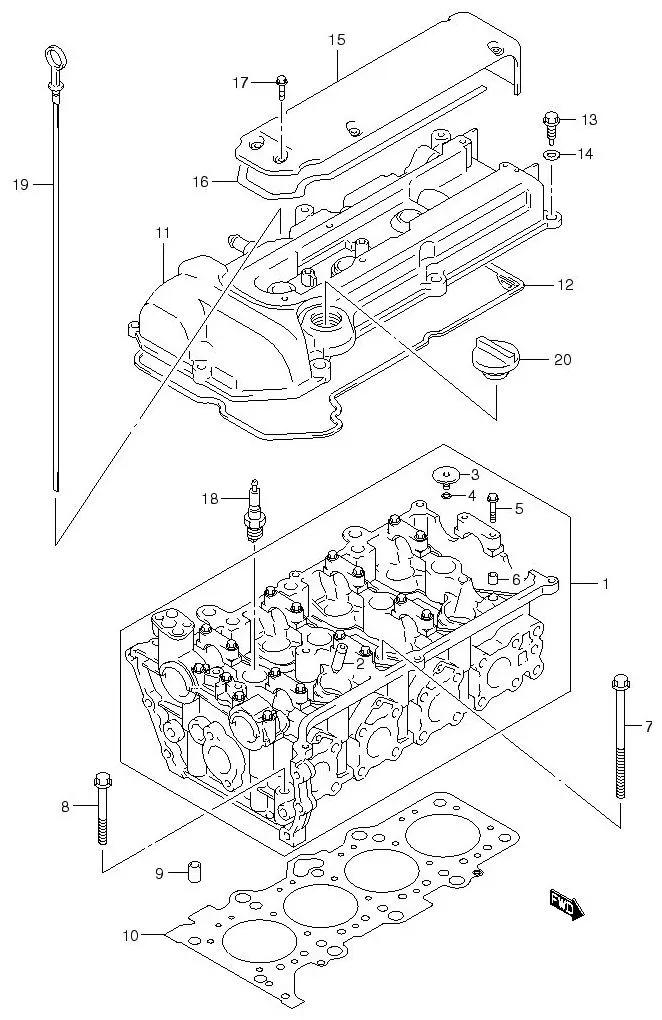

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-54GE3-000 HEAD ASSY, CYLINDER 1 Rp15.985.500
2 11115-54G00-001 •GUIDE, VALVE 16 Rp181.000
3 09248-18011-000 •PLUG 3 Rp38.000
4 11216-77E00-000 •GASKET 3 Rp21.000
5 11128-69G01-000 •BOLT 21 Rp24.000
6 09206-08001-000
SUB: 09206B08001N000		 •PIN (6.2X8X11) 18 Rp5.500
7 11117-69G00-000 BOLT 10 Rp55.500
8 01550-0880A-000 BOLT 1 Rp5.500
9 04211M13189-000 PIN 2 Rp9.000
10 11141-69G03-000 GASKET, CYLINDER HEAD 1 Rp706.500
11 11170-69GE3-000 COVER, CYLINDER HEAD 1 Rp3.763.000
12 11189-54GE0-000 GASKET, CYLINDER HEAD COVER 1 Rp195.500
13 11178-69G01-000 BOLT 7 Rp18.500
14 11180-69G00-000 WASHER 7 Rp32.500
15 11181-69G03-000 COVER, CYLINDER HEAD UPPER 1 Rp432.500
16 11184-69G00-000 SEAL 1 Rp49.000
17 09103-06232-000 BOLT (6X16) 4 Rp21.500
18 09482-00794-000
SUB: 09482-00794L000		 SPARK PLUG (NGK,BKR6E-11) 4 Rp33.500
19 16910-69G01-000 GAUGE, OIL LEVEL 1 Rp138.000
20 16920-83G02-000
SUB: 16920-83G10-000		 CAP, OIL FILLER 1 Rp149.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
