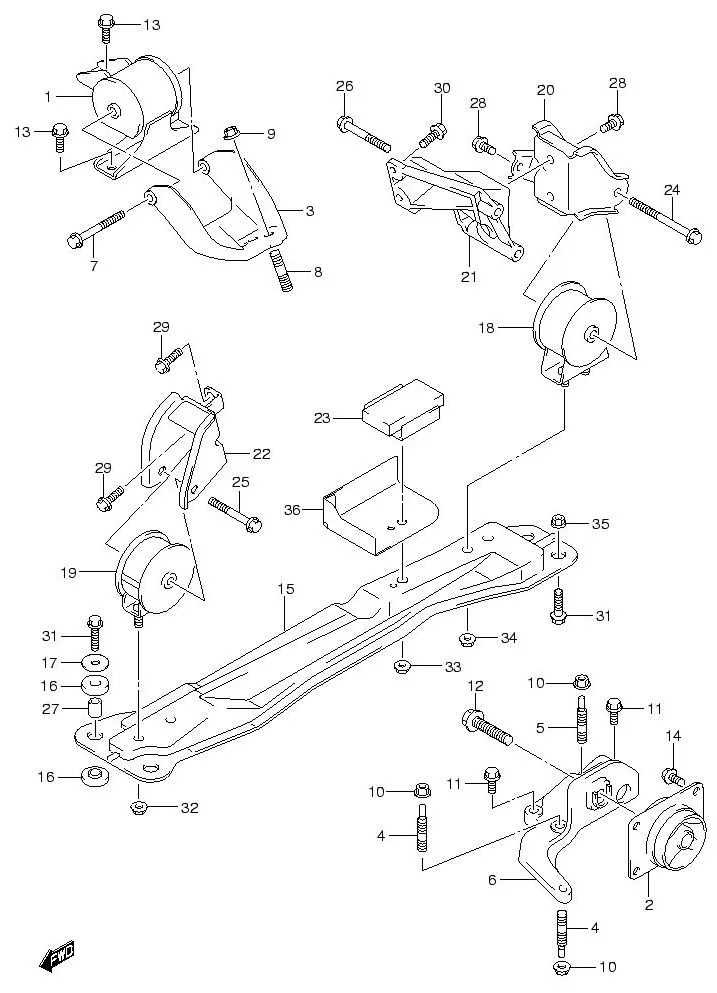

FIG.6 ENGINE MOUNTING (AT)

FIG.6 ENGINE MOUNTING (AT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-80JA0-000 MOUNTING, ENGINE RH 1 Rp1.182.500
2 11620-80JA0-000 MOUNTING, ENGINE LH 1 Rp620.000
3 11641-79J00-000 BRACKET, ENG RH MTG 1 Rp559.500
4 11653-79J50-000 STUD BOLT 1 Rp40.000
5 11653-80JA0-000 STUD BOLT 1 Rp53.000
6 11671-79J10-000 BRACKET, ENG LH MTG 1 Rp1.179.000
7 09103-10322-000 BOLT (10X120) 1 Rp48.000
8 09108-10136-000 STUD BOLT 3 Rp31.500
9 09159-10115-000 NUT 3 Rp23.000
10 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
11 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 2 Rp5.500
12 01550-1245A-000 BOLT 1 Rp7.000
13 01551-1025A-000 BOLT 3 Rp29.000
14 01551-1025A-000 BOLT 4 Rp29.000
15 DISCONTINUE
SUB: 11630B79J00N000		 MEMBER, MOUNTING 1 -
16 11684-80J00-000
SUB: 11684B80J00N000		 CUSHION 4 Rp30.000
17 11685-79J00-000 WASHER 2 Rp19.000
18 11710-80J10-000 MOUNTING, ENGINE RR 1 Rp644.500
19 11720-80JA0-000 MOUNTING, ENGINE FR 1 Rp620.000
20 11741-79J00-000 BRACKET, ENG RR MTG NO.1 1 Rp483.500
21 11751-79J00-000 BRACKET, ENG RR MTG NO.2 1 Rp787.000
22 11761-79J00-000 BRACKET, ENG FR MTG 1 Rp441.000
23 11915-79J00-000 DAMPER, DYNAMIC 1 Rp655.500
24 09103-10337-000 BOLT (10X85) 1 Rp42.500
25 09103-10341-000 BOLT (10X80) 1 Rp34.000
26 09103-12083-000 BOLT (12X125) 2 Rp54.000
27 DISCONTINUE
SUB: 09180-10302-000		 SPACER (10.2X16X20) 2 -
28 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 3 Rp3.500
29 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 3 Rp3.500
30 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 2 Rp25.500
31 09103-10401-000 BOLT (10X40) 4 Rp33.000
32 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
33 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
34 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
35 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
36 DISCONTINUE
SUB: 11921-80J00-000		 INSULATOR, HEAT 1 - 4DR

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
