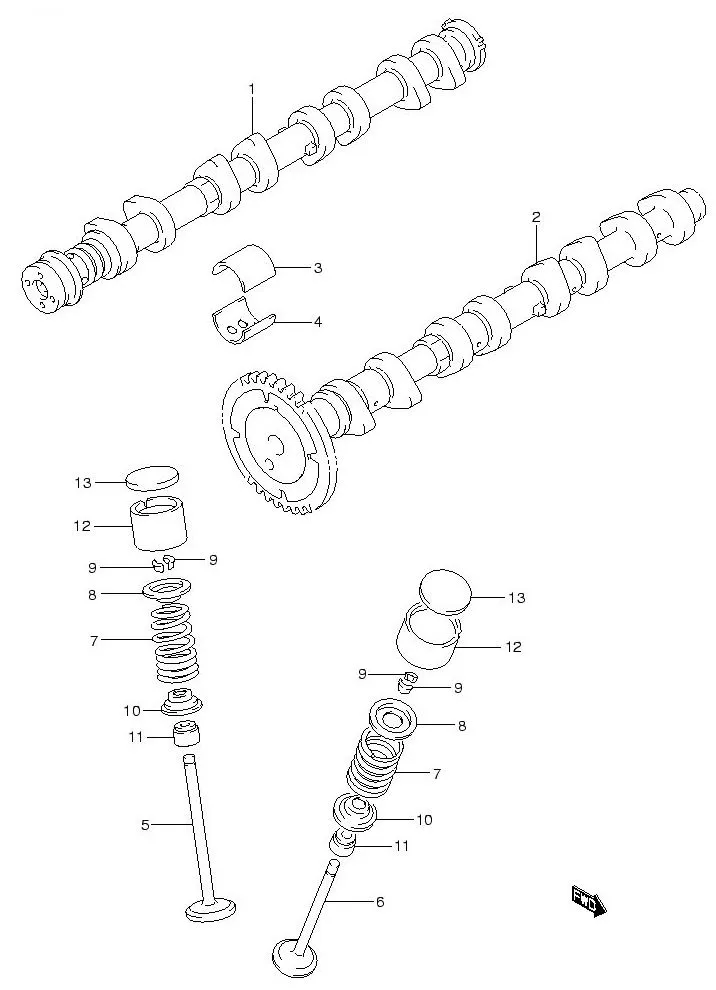

FIG.8 CAM SHAFT/VALVE

FIG.8 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-69GE1-000
SUB: 12710-69GE0-000		 CAM SHAFT, INTAKE 1 Rp4.028.000
2 12720-54G12-000
SUB: 12720-54G11-000		 CAM SHAFT, EXHAUST 1 Rp5.205.500
3 12737-69GE1-000 BEARING, UPPER 1 Rp262.500
4 12738-69GE1-000 BEARING, LOWER 1 Rp155.500
5 12911-81K00-000
SUB: 12911B54G00N000		 VALVE, INTAKE 8 Rp140.500
6 12915-54G50-000 VALVE, EXHAUST 8 Rp325.500
7 12921-71C01-000 SPRING, VALVE 16 Rp58.500
8 12931-78G00-000 RETAINER, VALVE SPRING 16 Rp35.500
9 12932-24400-000 COTTER, VALVE 32 Rp13.000
10 12933-69G10-000 SEAT, VALVE SPRING 16 Rp24.000
11 DISCONTINUE
SUB: 09289B05012N000		 SEAL, OIL (5.5X11.5X9.3) 16 -
12 12891-69G00-000 TAPPET 16 Rp274.500
13-18 12892-69G10-260 SHIM, TAPPET (T:2.60) 0 Rp80.000
13-34 12892-69G10-300 SHIM, TAPPET (T:3.00) 0 Rp83.000
13-19 12892-69G10-263 SHIM, TAPPET (T:2.625) 0 Rp83.500
13-20 12892-69G10-265 SHIM, TAPPET (T:2.65) 0 Rp83.000
13-21 12892-69G10-268 SHIM, TAPPET (T:2.675) 0 Rp85.000
13-22 12892-69G10-270 SHIM, TAPPET (T:2.70) 0 Rp83.000
13-23 12892-69G10-273 SHIM, TAPPET (T:2.725) 0 Rp84.500
13-24 12892-69G10-275 SHIM, TAPPET (T:2.75) 0 Rp83.500
13-25 12892-69G10-278 SHIM, TAPPET (T:2.775) 0 Rp83.500
13-26 12892-69G10-280 SHIM, TAPPET (T:2.80) 0 Rp83.000
13-27 12892-69G10-283 SHIM, TAPPET (T:2.825) 0 Rp85.000
13-28 12892-69G10-285 SHIM, TAPPET (T:2.85) 0 Rp85.000
13-29 12892-69G10-288 SHIM, TAPPET (T:2.875) 0 Rp85.000
13-30 12892-69G10-290 SHIM, TAPPET (T:2.90) 0 Rp85.000
13-31 DISCONTINUE
SUB: 12892-69G10-293		 SHIM, TAPPET (T:2.925) 0 -
13-32 12892-69G10-295 SHIM, TAPPET (T:2.95) 0 Rp83.500
13-33 12892-69G10-298 SHIM, TAPPET (T:2.975) 0 Rp85.000
13-9 12892-69G10-238 SHIM, TAPPET (T:2.375) 0 Rp84.500
13-1 12892-69G10-218 SHIM, TAPPET (T:2.175) 0 Rp85.000
13-2 12892-69G10-220 SHIM, TAPPET (T:2.20) 0 Rp83.000
13-3 12892-69G10-223 SHIM, TAPPET (T:2.225) 0 Rp84.500
13-4 12892-69G10-225 SHIM, TAPPET (T:2.25) 0 Rp84.500
13-5 12892-69G10-228 SHIM, TAPPET (T:2.275) 0 Rp84.500
13-6 12892-69G10-230 SHIM, TAPPET (T:2.30) 0 Rp84.500
13-7 12892-69G10-233 SHIM, TAPPET (T:2.325) 0 Rp84.500
13-8 12892-69G10-235 SHIM, TAPPET (T:2.35) 0 Rp84.500
13-17 12892-69G10-258 SHIM, TAPPET (T:2.575) 0 Rp83.500
13-10 12892-69G10-240 SHIM, TAPPET (T:2.40) 0 Rp84.500
13-11 12892-69G10-243 SHIM, TAPPET (T:2.425) 0 Rp82.500
13-12 12892-69G10-245 SHIM, TAPPET (T:2.45) 0 Rp82.500
13-13 12892-69G10-248 SHIM, TAPPET (T:2.475) 0 Rp83.000
13-14 12892-69G10-250 SHIM, TAPPET (T:2.50) 0 Rp80.000
13-15 12892-69G10-253 SHIM, TAPPET (T:2.525) 0 Rp80.000
13-16 12892-69G10-255 SHIM, TAPPET (T:2.55) 0 Rp83.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
