SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

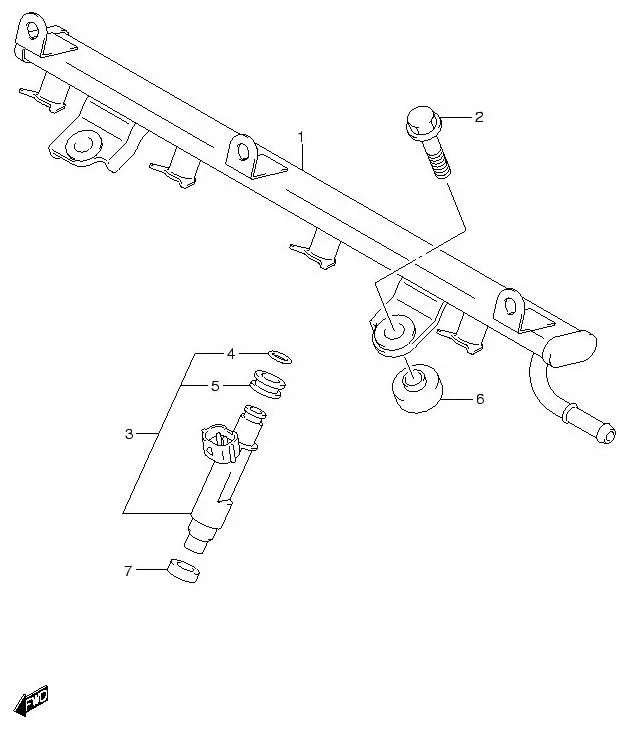

FIG.16 DELIVERY PIPE

FIG.16 DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 15730-86G00-000		 PIPE, FUEL DELIVERY 1 -
2 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 2 Rp4.000
3 15710-81K00-000
SUB: 15710B81K00N000		 INJECTOR ASSY, FUEL 4 Rp998.000
4 15710-09300-000
SUB: 15710B09300N000		 •O RING 4 Rp13.500
5 15720-09300-000
SUB: 15720B09300N000		 •GROMMET 4 Rp11.500
6 15735-58B00-000 INSULATOR, DELIVERY PIPE 2 Rp45.500
7 09320-09022-000
SUB: 09320-08062-000		 CUSHION (8.7X16.3X5.5) 4 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
