SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

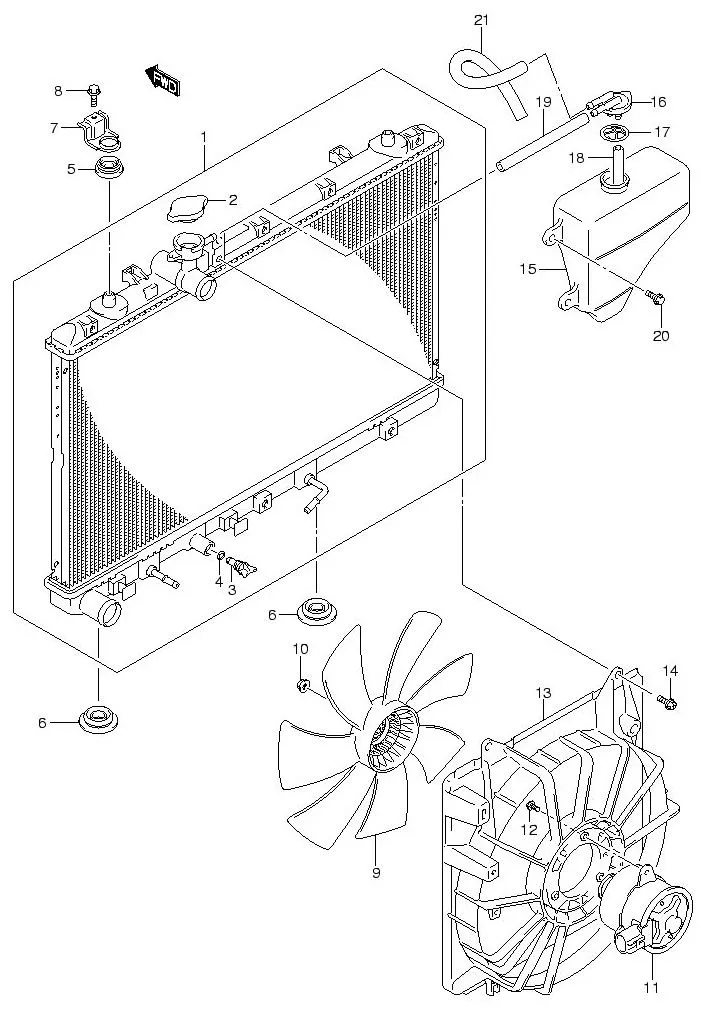

FIG.19 RADIATOR

FIG.19 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 17700-81K10-000
SUB: 17700B81K10N000		 RADIATOR ASSY 1 Rp3.450.000 AT
1-1 17700-81K00-000
SUB: 17700B81K00N000		 RADIATOR ASSY 1 Rp3.450.000 MT
2 DISCONTINUE
SUB: 17920B75F00N000		 •CAP 1 -
3 17751-61A00-000
SUB: 17751B61A00N000		 •PLUG, DRAIN 1 Rp13.000
4 17759-72010-000 •O RING 1 Rp17.000
5 17879M75J00-000
SUB: 17879M75F00-000		 MOUNT, RDTR UPPER 2 Rp11.000
6 17878-81K00-000
SUB: 17878B75F00N000		 MOUNT, RDTR LOWER 2 Rp14.000
7 17861-79J00-000 BRACKET, RDTR SUPPORT UPPER 2 Rp69.000
8 09103-08382-000 BOLT (8X12) 2 Rp20.500
9 17111-81K00-000
SUB: 17111B81K00N000		 FAN, COOLING 1 Rp275.000
10 08316-2005A-000 NUT 1 Rp13.000
11 17120-81K00-000
SUB: 17120B81K00N000		 MOTOR ASSY, FAN 1 Rp411.000
12 17129M50F10-000 SCREW 3 Rp5.500
13 DISCONTINUE
SUB: 17760B81K00N000		 SHROUD 1 -
14 02162-0616B-000 SCREW 2 Rp15.500
15 17931-79J00-000 TANK, WATER RESERVE 1 Rp240.500
16 17932-60B10-000 CAP 1 Rp80.000
17 17933-60B00-000
SUB: 17933B60B00N000		 RUBBER 1 Rp5.500
18 09352-70111-600 HOSE, WTR RSV TANK 1 Rp82.500 L:600->170
19 17939-81K00-000
SUB: 17939B80JA0N000		 HOSE, RDTR TO RSV TANK 1 Rp11.000
20 02162-0616A-000 BOLT 3 Rp3.000
21 17936-80JA0-000 HOSE, VENT 1 Rp55.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
