SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

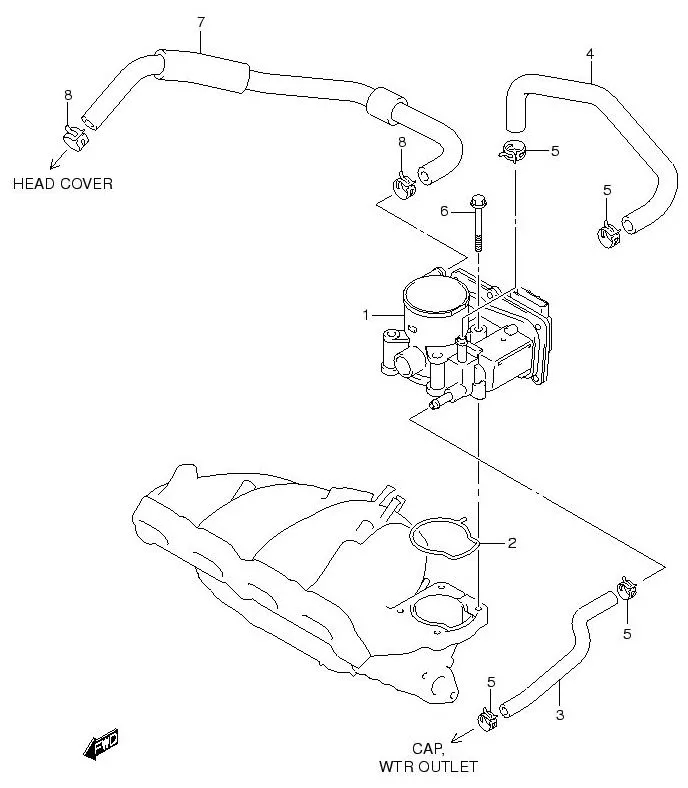

FIG.11 THROTTLE BODY

FIG.11 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-80JA0-000 BODY ASSY, THROTTLE 1 Rp5.974.000
2 13421-86G00-000 GASKET, THROTTLE BODY 1 Rp73.500
3 13491-80JA0-000 HOSE, WTR THROT BODY INLET 1 Rp81.500
4 13492-81K00-000 HOSE, WTR THROT BODY OUTLET 1 Rp90.500
5 09401-12410-000 CLIP 4 Rp15.000
6 01550-0855A-000 BOLT 4 Rp3.500
7 11191-60J00-000 HOSE, BREATHER 1 Rp249.000
8 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
