SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

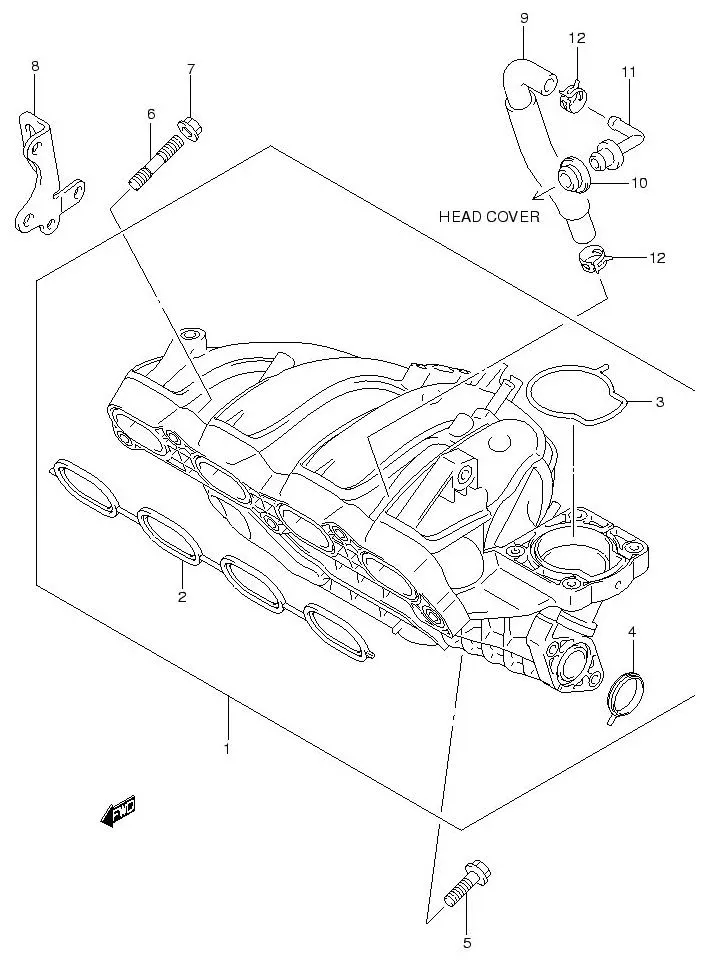

FIG.10 INTAKE MANIFOLD

FIG.10 INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110-86G00-000 MANIFOLD, INTAKE 1 Rp4.421.000
2 13119-86G00-000 •GASKET, INTK MANF 1 Rp134.000
3 13421-86G00-000 •GASKET, THROTTLE BODY 1 Rp73.500
4 18534-86G00-000 •GASKET, EGR PIPE 1 Rp56.500
5 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 3 Rp3.500
6 09108-08266-000 STUD BOLT 3 Rp26.500
7 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
8 DISCONTINUE
SUB: 11851-86G00-000		 HOOK, ENGINE 1 -
9 11193-60J00-000 HOSE, PCV 1 Rp102.500
10 11198M79F00-000
SUB: 11198M58B00-000		 SEAL, PCV VALVE 1 Rp16.500
11 18118-54D00-000 VALVE, PCV 1 Rp186.500
12 09401-13414-000 CLIP 2 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
