SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

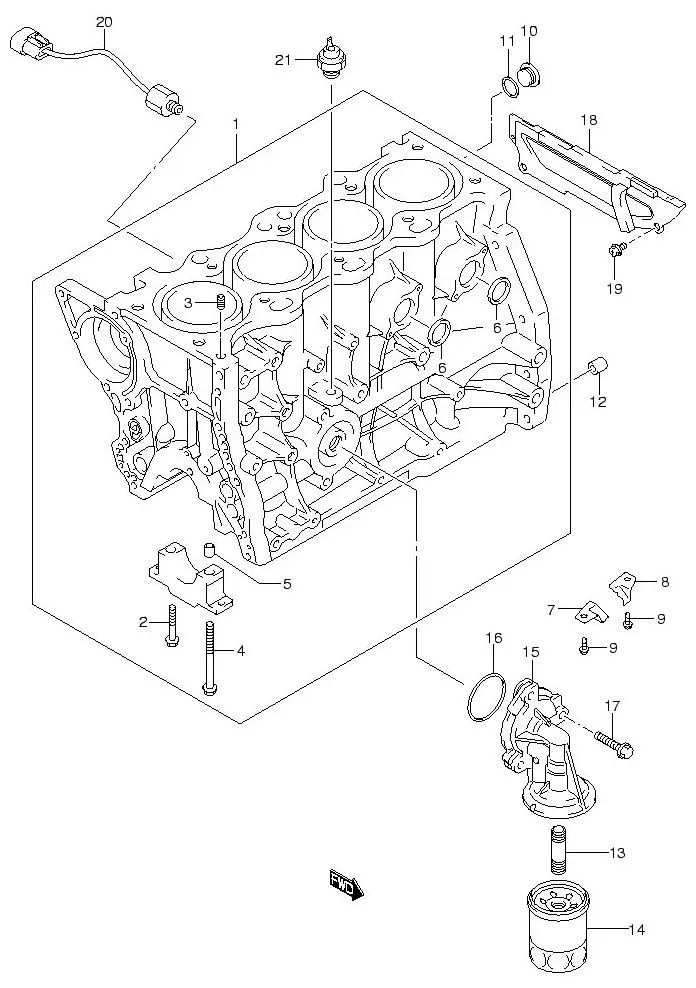

FIG.3 CYLINDER

FIG.3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200-54LB0-X12
SUB: 11200-54G06-000		 BLOCK ASSY, CYLINDER 1 Rp34.753.500
2 01550-0840A-000
SUB: 01550B0840AN000		 •BOLT 10 Rp3.500
3 11112-73010-000 •PLUG, OIL VENTURI 1 Rp24.000
4 11260-69G01-000
SUB: 11260-69G00-000		 •BOLT 10 Rp53.500
5 04211M13189-000 •PIN 5 Rp9.000
6 09241M30010-000 •PLUG (OD:30) 2 Rp5.500
7 DISCONTINUE
SUB: 11213-69G00-000		 PLATE, BREATHER FRONT 1 -
8 DISCONTINUE
SUB: 11214-69G00-000		 PLATE, BREATHER REAR 1 -
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
10 09248-18011-000 PLUG 1 Rp38.000
11 11216-77E00-000 GASKET 1 Rp21.000
12 09202-08004-000
SUB: 09202B08004N000		 PIN 2 Rp6.500
13 11241-86FA0-000 STAND, OIL FILTER 1 Rp88.000
14-1 16510-61A32-000
SUB: 16510-61A02-000		 FILTER ASSY, OIL (TOKYO ROKI) 1 Rp164.000
14-2 16510-61A32-000
SUB: 16510B61A30N000		 FILTER ASSY, OIL (WAKO) 1 Rp164.000
15 16531-69G20-000
SUB: 16531-69G10-000		 CASE, OIL FLTR ADAPTER 1 Rp818.500
16 09280-62003-000 O RING 1 Rp43.500
17 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 3 Rp4.000
18 11320-63J00-000 PLATE, CL HSG LOWER 1 Rp136.500
19 02162-0610A-000 BOLT 2 Rp5.000
20 18640-78G00-000 SENSOR ASSY, KNOCK 1 Rp1.298.000
21 37820-80GP0-000
SUB: 37820-80G01-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
