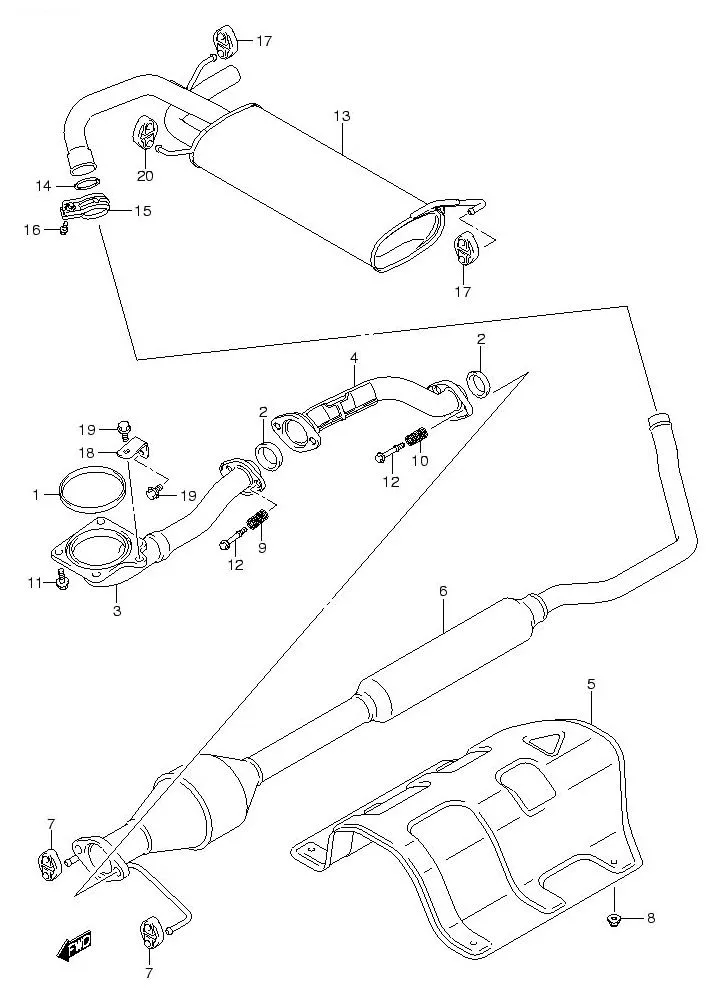

FIG.14 MUFFLER

FIG.14 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-70H00-000 GASKET 1 Rp109.500
2 14183-76A00-000 RING, SEAL 2 Rp126.500
3 14190-80JB0-000 PIPE, EXH NO.1 1 Rp2.548.500
4 14220-80J10-000 PIPE, EXH NO.2 1 Rp1.673.000
5 14231-79J01-000 INSULATOR 1 Rp444.000
6 14250-80JB2-000 PIPE, EXH CENTER 1 Rp6.850.000
7 14281-80JA0-000
SUB: 14281B80JA0N000		 MOUNTING 2 Rp67.500
8 14357-72J00-000 NUT 4 Rp14.500
9 14492-67D00-000 SPRING 2 Rp64.000
10 14492-67D00-000 SPRING 2 Rp64.000
11 09103-10324-000 BOLT (10X20) 4 Rp30.000
12 09119-10073-000 BOLT (10X65) 4 Rp75.000
13-1 14300-80J11-000 MUFFLER 1 Rp5.369.000 4DR
13-2 14300-80J00-000 MUFFLER 1 Rp3.379.500 5DR
14 14184-80J00-000 GASKET 1 Rp81.500
15 14185-80J00-000 CLAMP 1 Rp68.500
16 14186-80J00-000 BOLT (8X40) 1 Rp93.500
17 14281-80JA0-000
SUB: 14281B80JA0N000		 MOUNTING 2 Rp67.500
18 DISCONTINUE
SUB: 14271B63J00N000		 STIFFENER 1 -
19 09103-10324-000 BOLT (10X20) 2 Rp30.000
20 14281-80J00-000
SUB: 14281B80J00N000		 MOUNTING 1 Rp185.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
