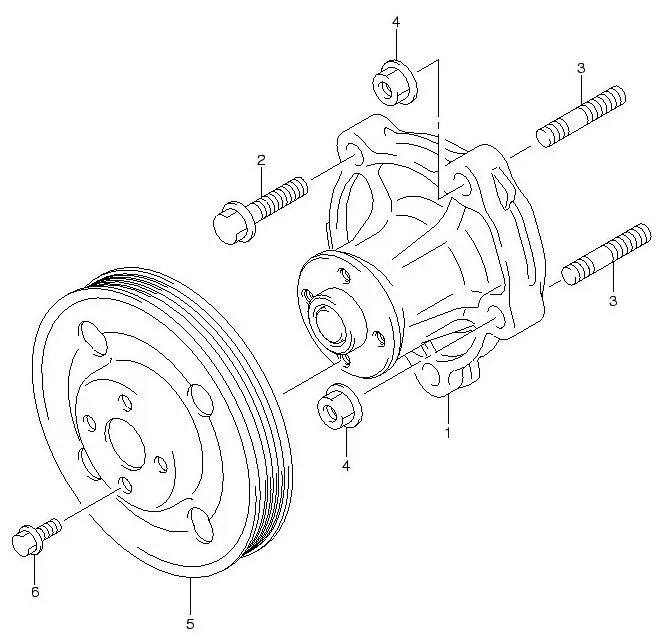

FIG.18 WATER PUMP

FIG.18 WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-69G05-000
SUB: 17400-69G01-000		 PUMP ASSY, WATER 1 Rp1.212.000
2 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 3 Rp3.500
3 01421-0830A-000 STUD BOLT 2 Rp16.500
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
5 17511-64J01-000 PULLEY, WATER PUMP 1 Rp344.500
6 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 4 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
