SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

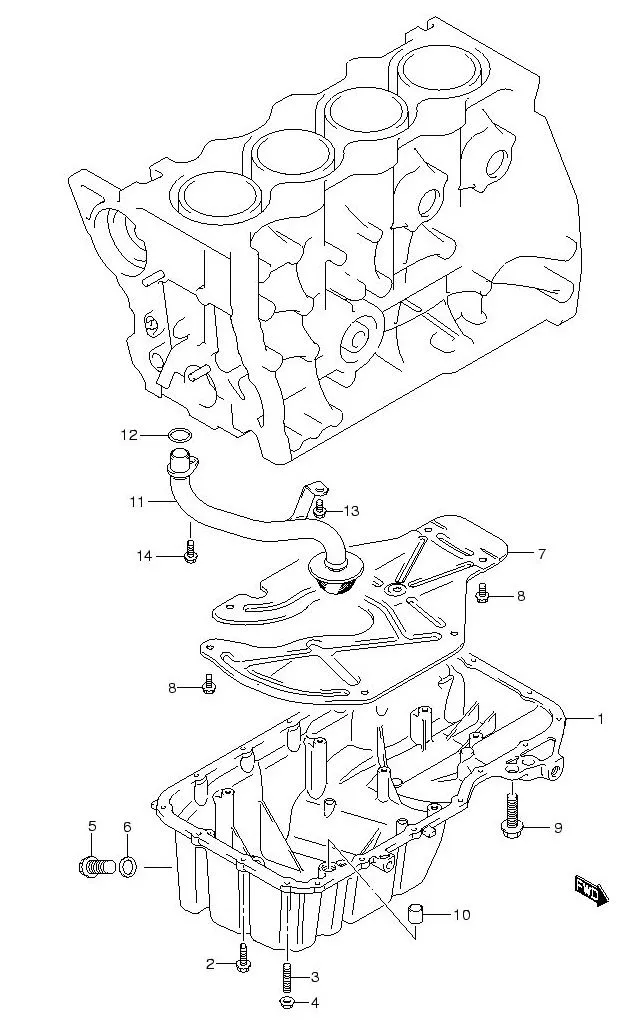

FIG.4 OIL PAN

FIG.4 OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11511-63J06-000
SUB: 11511-63J04-000		 PAN, OIL 1 Rp2.279.000
2 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 17 Rp3.500
3 01421-0620A-000
SUB: 01421B0620AN000		 STUD BOLT 2 Rp3.500
4 09159-06077-000 NUT 2 Rp17.500
5 11518-63J01-000 PLUG 1 Rp19.000
6 09168-14015-000
SUB: 09168M14015-000		 GASKET 1 Rp7.500
7 11512-63J01-000 PLATE, BAFFLE 1 Rp101.000
8 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 8 -
9 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 1 Rp5.500
10 04211M13189-000
SUB: 04211M13149-000		 PIN 1 Rp9.000
11 16520-69G04-000
SUB: 16520-69G03-000		 STRAINER, OIL PUMP 1 Rp391.000
12 51181-37B00-000
SUB: 09280B17002N000		 O RING 2 Rp5.000
13 07120-0612A-000 BOLT 1 Rp16.500
14 07120-0616A-000 BOLT 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
