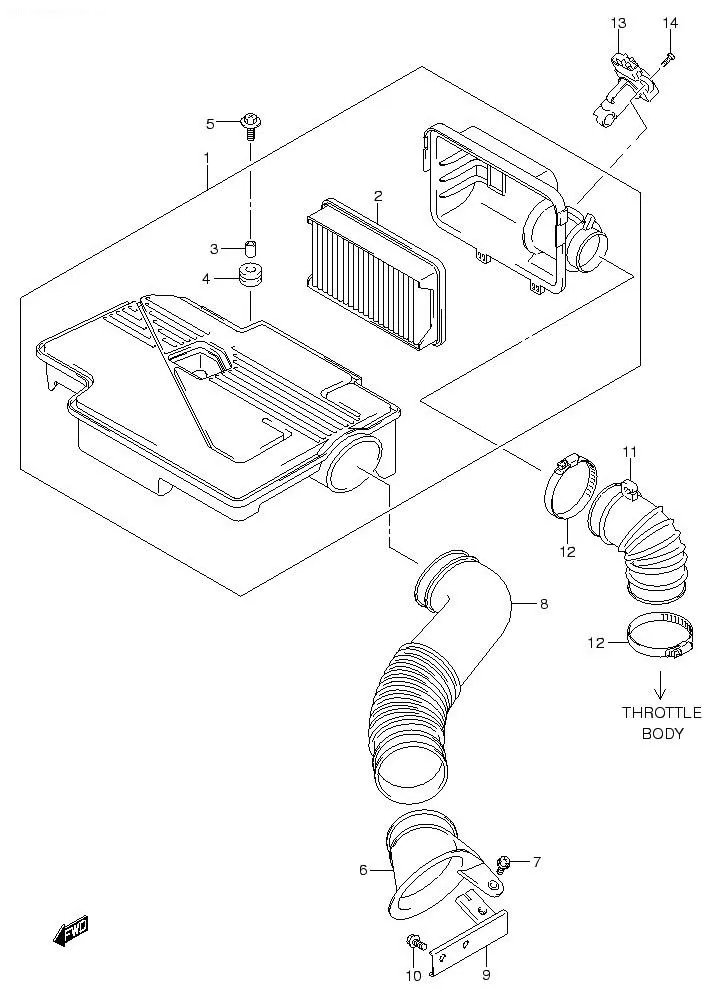

FIG.12 AIR CLEANER

FIG.12 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-79J00-000 CLEANER ASSY, AIR 1 Rp2.607.000
2 13780-79J00-000 •ELEMENT 1 Rp203.000
3 13812-79J01-000
SUB: 13812M79J00-000		 •COLLAR 3 Rp18.500
4 13813-83000-000 •GROMMET 3 Rp31.500
5 09136-06141-000 BOLT (6X25) 3 Rp17.000
6 DISCONTINUE
SUB: 13765B79J01N000		 PIPE, AIR CLEANER SUCTION 1 -
7 02162-0612A-000 SCREW 1 Rp11.000
8 13766-79J00-000
SUB: 13766B79J00N000		 HOSE, AIR SUCTION 1 Rp106.000
9 13811-79J00-000
SUB: 13811B79J00N000		 BRACKET 1 Rp120.000
10 02162-0612A-000 SCREW 2 Rp11.000
11 13881-63J00-000
SUB: 13881B63J00N000		 HOSE, AIR CLEANER OUTLET 1 Rp74.500
12 09402-70503-000 CLAMP 2 Rp91.500
13 13800-63J00-000 SENSOR ASSY, MAF 1 Rp3.059.000
14 02112-0410A-000 SCREW 2 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
