SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

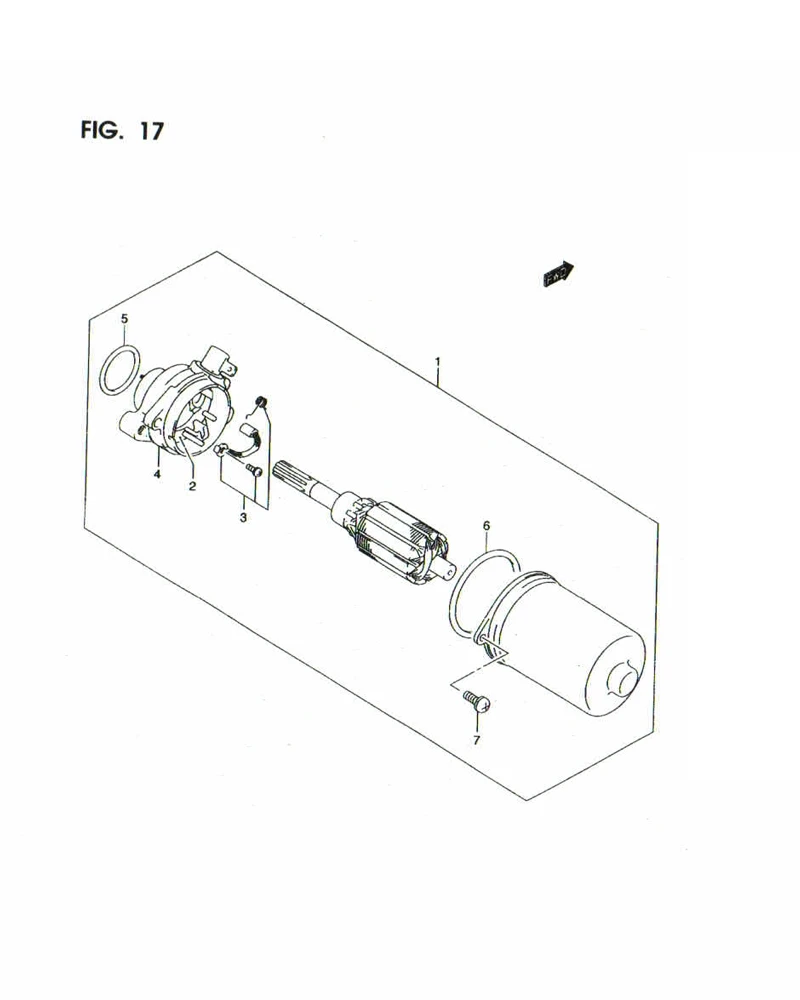

FIG. 17 STARTER MOTOR

FIG. 17 STARTER MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1-1 3110-30D50L-000 MOTOR ASSY, STARTING (JIDECO) 1 -
1-2 3110-30D10L-000 MOTOR ASSY STARTING (MITSUBA) 1 -
2-1 DISCONTINUE
SUB: 31130B30D50N000		 .HOLDER SET, BRUSH 1 -
2-2 31130-30D10-000
SUB: 31130B30D10N000		 .HOLDER SET BRUSH 1 Rp93.000
3-1 3113B30D50N-000 .BRUSH SET 1 -
3-2 31131B30D10N000 .BRUSH SET 1 -
4-1 DISCONTINUE
SUB: 31151B30D50N000		 .HOUSING SET 1 -
4-2 31151B30D10N000 .HOUSING SET 1 -
5-1 DISCONTINUE
SUB: 31156B30D50N000		 .O RING 1 -
5-2 31156B30D10N000 .O RING 1 -
6-1 DISCONTINUE
SUB: 31158B30D50N000		 .SEAL 1 -
6-2 31158B30D10N000 .SEAL 1 -
7 DISCONTINUE
SUB: 02112-34103-000		 .SCREW 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
