SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

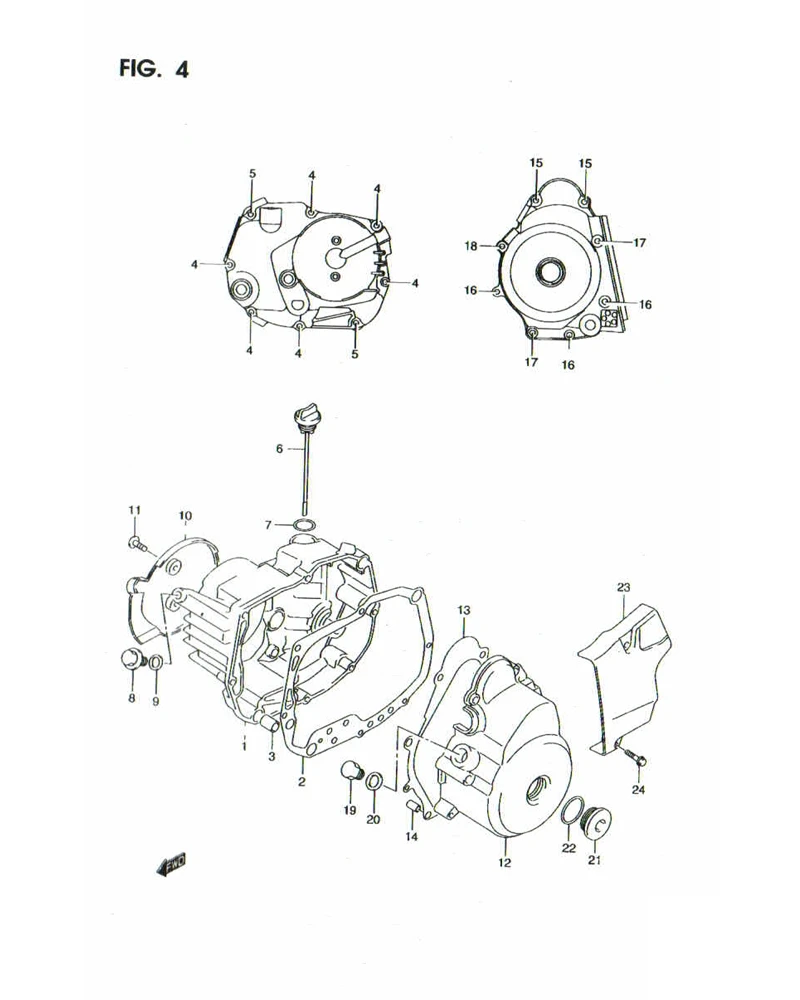

FIG. 4 CRANKCASE COVER

FIG. 4 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11341-09G01-000
SUB: 11341B09G00N000		 COVER, CLUTCH 1 Rp378.000
2 11482-09G00-001
SUB: 11482B09G00N000		 GASKET, CLUTCH COVER 1 Rp14.500
3 04211M13189-000
SUB: 04211-13189-000		 PIN 2 Rp9.000
4 01547-0630A-000
SUB: 01547-06303-000		 SCREW 6 Rp6.500
5 01547-0640B-000
SUB: 01547-06403-000		 SCREW 2 Rp7.000
6 11971-09403-000 GAUGE, OIL LEVEL 1 Rp46.000
7 09280-17003-000 O RING 1 Rp2.000
8 01550-0812A-000
SUB: 01550-08123-000		 PLUG, OIL CHECK 1 Rp3.500
9 09168-08015-000 GASKET 1 Rp2.000
10 11383-23F00L000 CAP, CLUTCH COVER 1 -
11 02142-0508A-000
SUB: 02142-05083-000		 SCREW, CAP 2 Rp3.500
12 DISCONTINUE
SUB: 11351B23F00N000		 COVER, MAGNETO 1 -
13 11483-09G00-001
SUB: 11483B09G00N000		 GASKET, MAGNETO COVER 1 Rp13.500
14 04211-09149-000 PIN 2 Rp3.000
15 01547-0620B-000
SUB: 01547-06203-000		 SCREW 2 Rp6.500
16 01547-0630A-000
SUB: 01547-06303-000		 SCREW 3 Rp6.500
17 01547-0640B-000
SUB: 01547-06403-000		 SCREW 2 Rp7.000
18 01547-0650A-000
SUB: 01547-06503-000		 SCREW 1 Rp7.000
19 09247-12104-000 PLUG, TOP (12X10) 1 Rp17.500
20 09168-12002-000 GASKET (12. 1X16. 2X1 .2) 1 Rp10.000
21 DISCONTINUE
SUB: 09259-26014-000		 PLUG, HOLE 2 -
22 09280-22008-000 O RING 1 Rp3.500
23-1 1136B23F01N-000 COVER ENGINE SPROCKET 1 -
23-2 DISCONTINUE
SUB: 11361B23F11N000		 COVER ENGINE SPROCKET 1 -
24 01547-0630A-000
SUB: 01547-06303-000		 SCREW 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
