SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

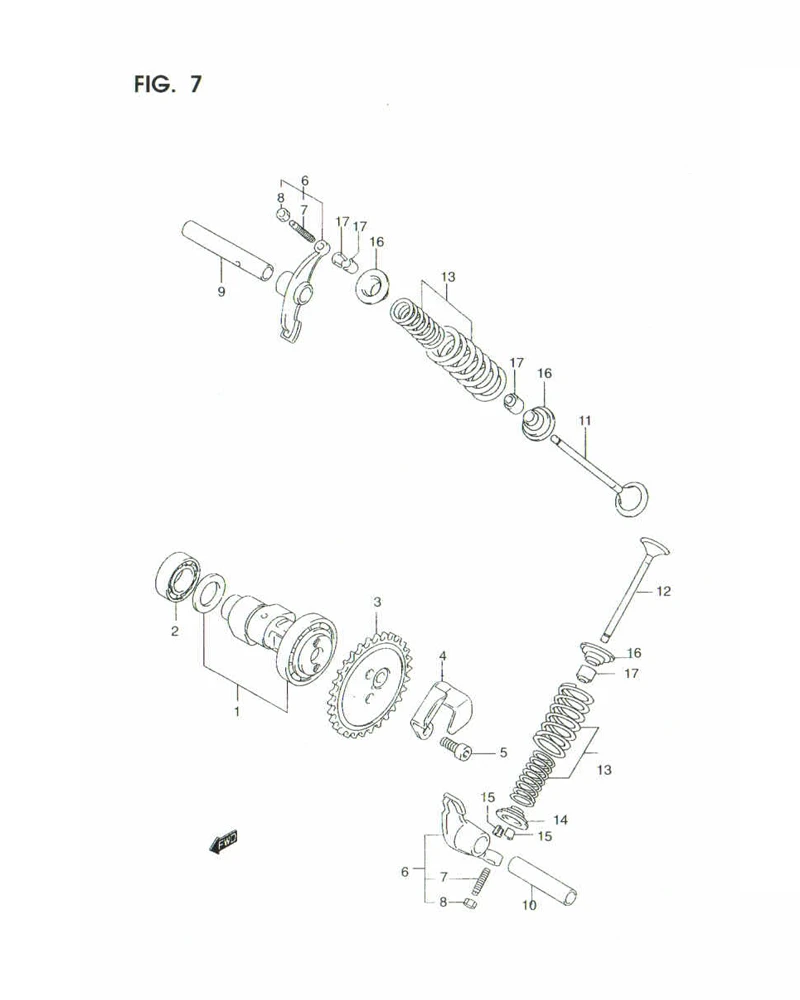

FIG. 7 CAM SAFT / VALVE

FIG. 7 CAM SAFT / VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12710B09G10N000		 CAM SHAFT 1 -
2 DISCONTINUE
SUB: 09262-15026-000		 BEARING 1 -
3 12741-09G00-000 SPROCKET, CAM SHAFT 1 Rp155.500
4 12954-09G10-000
SUB: 12954-09G00-000		 WASHER, SPROCKET 1 Rp25.000
5 09106-05027-000 BOLT 2 Rp3.000
6 12840-20G20-000
SUB: 12840-09G00-000		 ARM, VALVE ROCKER 2 Rp127.500
7 12842-49201-000 SCREW, ADJUSTING 2 Rp30.500
8 12843-27A00-000 NUT, ADJUSTING 2 Rp19.000
9 12861-09D00-000 SHAFT, ROCKER ARM INTAKE 1 Rp16.500
10 12871-30A00-000 SHAFT, ROCKER ARM EXHAUST 1 Rp14.500
11 12911-09G20-000
SUB: 12911B09G00N000		 VALVE, INTAKE 1 Rp45.000
12 12912-09G20-000
SUB: 12912B09G00N000		 VALVE, EXHAUST 1 Rp66.500
13 12921-09G00-000 SPRING SET, VALVE 2 Rp12.000
14 1293109G00 RETAINER, VALVE SPRING 2 Rp12.931
15 12932-09G00-000 COTTER, VALVE 4 Rp4.500
16 12933-09G00-000 SEAT, SPRING 2 Rp9.000
17 09289-05008-000
SUB: 09289B05008N000		 OIL SEAL 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
