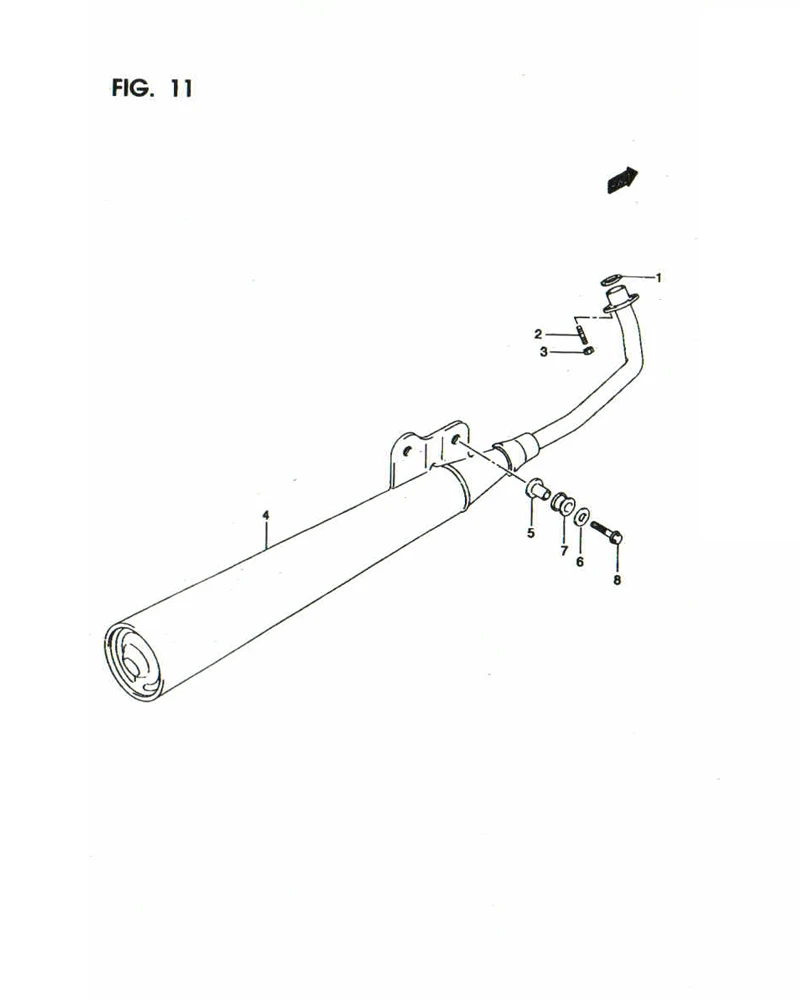

FIG. 11 MUFFLER

FIG. 11 MUFFLER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	14181-23F30-000 SUB: 14181-23F10-000	GASKET, EXHAUST PIPE	1	Rp5.000
2	01421-0616A-000 SUB: 01421-06163-000	BOLT, STUD	2	Rp3.500
3	08316-1006A-000 SUB: 08316-10063-000	NUT	2	Rp2.000
4	DISCONTINUE SUB: 14305B09G00N000	MUFFLER ASSY	2	-
5	19180-08151-000	SPACER, MUF SPRT	2	-
6	09160-08032-000	WASHER	2	Rp6.500
7	09320-12033-000	CUSHION	2	-
8	01550-0835B-000 SUB: 01550-08353-000	BOLT	2	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
