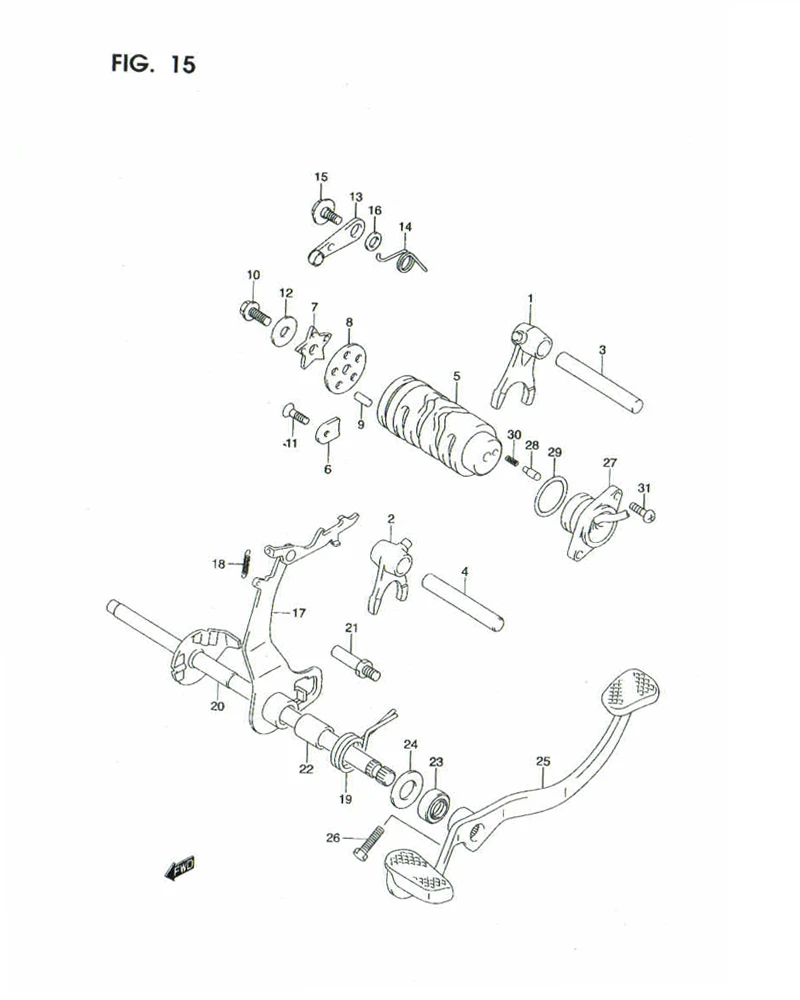

FIG. 15 GEAR SHIFTING

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 25211B23F10N000	FORK, GEAR SHIFT NO. 1	1	-
2	DISCONTINUE SUB: 25221B23F10N000	FORK, GEAR SHIFT NO. 2	1	-
3	DISCONTINUE SUB: 25411-13A10-000	SHAFT,SHIFT FORK NO. 1	1	-
4	DISCONTINUE SUB: 25421-35420-000	SHAFT, SHIFT FORK NO. 2	1	-
5	DISCONTINUE SUB: 25311-23F21-000	CAM, GEAR SHIFT	1	-
6	DISCONTINUE SUB: 25341-09G02-000	RETAINER, SHIFT CAM	1	-
7	DISCONTINUE SUB: 25381-30A50-000	PLATE, SHIFT CAM STOPPER	1	-
8	25382-30A70-000 SUB: 25382-30A60-000	GUIDE, GR SHF CAM	1	Rp48.500
9	09261-04002-000	PIN, SHIFT CAM (4X13.8)	5	Rp8.000
10	01547-0616A-000 SUB: 01547-06163-000	BOLT, SHIFT CAM PIN	1	Rp6.500
11	02122-0616A-000 SUB: 02122-06163-000	SCREW SHIFT CAM RETAINER	1	Rp3.500
12	08211-06221-000	STOPPER, SHIFT CAM PIN	1	Rp10.500
13	25350-23F00-000	STOPPER, SHIFT CAM	1	Rp70.500
14	2355B09420N-000	SPRING, SHIFT CAM	1	-
15	09111-06041-000	BOLT, SHIFT CAM (6X14.3)	1	Rp4.000
16	08211-06121-000	WASHER, SHIFT CAM	1	Rp7.500
17	25520-09G00-000 SUB: 25520-23F00-000	ARM, GEAR SHIFT	1	Rp81.000
18	09443-05019-000	SPRING, SHIFT PAWL	1	Rp6.500
19	09444-26027-000 SUB: 09444-26026-000	SPRING, SHIFT ARM RETURN	0	Rp10.500
20	25510-20G01-000 SUB: 25510-23F00-000	SHAFT, GEAR SHIFT	1	Rp134.000
21	DISCONTINUE SUB: 25671-31C00-000	STOPPER, SHIFT ARM	1	-
22	09180-12036-000	SPACER, SHIFT ARM (12X16X20)	1	Rp64.000
23	09283-12010-000 SUB: 09285-12002-000	SEAL, SHIFT SHAFT OIL	1	Rp10.000
24	08211-12261-000	WASHER, SHIFT SHAFT	1	Rp12.000
25	25610-09G10-000 SUB: 25610B09G00N000	LEVER, GEAR SHIFT	1	Rp92.000
26	01500-062013000	BOLT, SHIFT LEVER	1	-
27	37720-20G10-000 SUB: 37720-30D00-000	BASE ASSY, GEAR SHIFT	1	Rp42.500
28	09209-05011-000	CONTACT, GEAR POSITION	1	Rp5.500
29	09280-21008-000	O RING, GEAR SHIFT	1	Rp2.500
30	09440-04010-000	SPRING, GEAR SHIFT	1	Rp3.000
31	02112-0516A-000 SUB: 02112-05163-000	SCREW, GEAR SHIFT	2	Rp5.500
