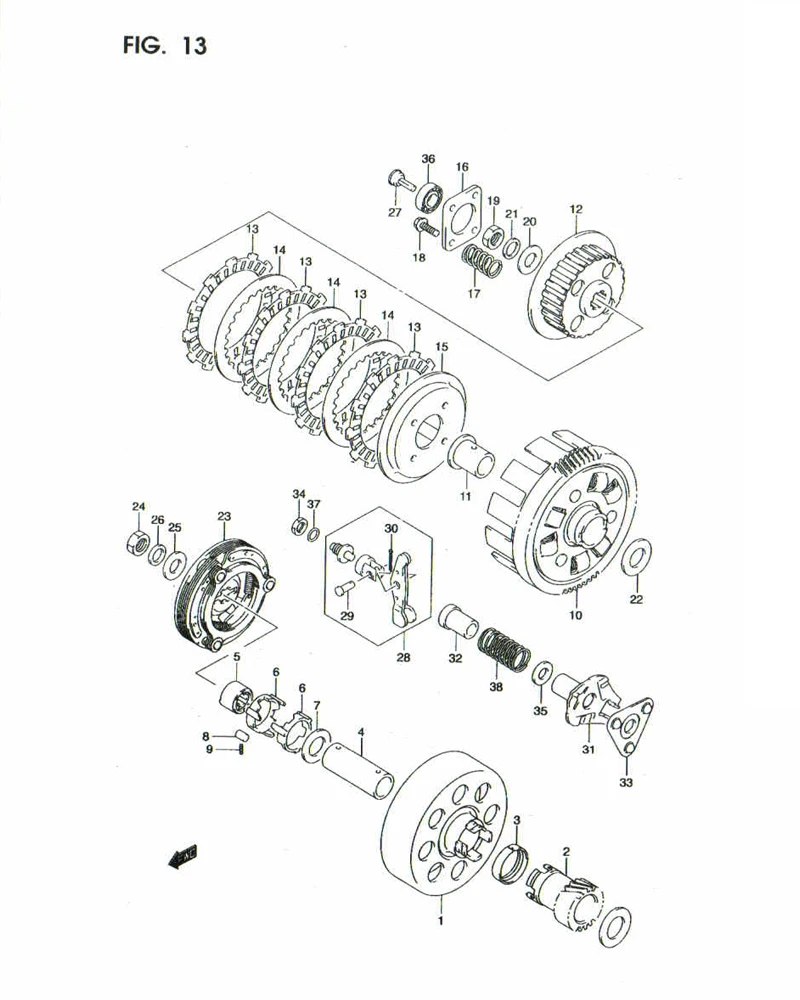

FIG. 13 CLUTCH

No	No. Part	Description	Qty	Price Per Pcs
1	21102-23FB0-000 SUB: 21102B23F10N000	HOUSING, CLUTCH 1ST	1	Rp222.000
2	DISCONTINUE SUB: 21111B23F00N000	GEAR, PRIMARY DRIVE	1	-
3	21114-23F00-000 SUB: 21114B23F00N000	RING, PRIMARY DRIVE GEAR	1	Rp34.500
4	DISCONTINUE SUB: 21119B23F01N000	SPACER,PRIMARY DRIVE	1	-
5	21631B21002N000	RACE, ONE WAY CLUTCH INR	1	-
6	21652-23F00-000	RETAINER, ONE WAY CLUTCH	2	Rp8.500
7	09181-18002-000	WASHER, PRI DRIVE GEAR	2	Rp10.000
8	09261-07006-000	ROLLER, ONE WAY CLUTCH	3	Rp4.000
9	09440-02002-000	SPRING, ONE WAY CLUTCH	3	Rp3.000
10	DISCONTINUE SUB: 21200B28F10N000	GEAR ASSY, PRIMARY DRIVEN	1	-
11	21251-23F20-000 SUB: 21251B23F20N000	SPACER, PRI DRIVER GEAR	1	Rp25.000
12	21411-20G00-000 SUB: 21411B09G00N000	HUB, CLUTCH SLEEVE	1	Rp60.000
13	DISCONTINUE SUB: 21441B23F00N000	PLATE, CLUTCH DRIVE	4	-
14	21451-21D40-000 SUB: 21451B21D40N000	PLATE, CLUTCH DRIVEN	3	Rp21.500
15	21461-09G00-000 SUB: 21461B09G00N000	DISK, CLUTCH PRESSURE	1	Rp35.000
16	21465-09G00-000 SUB: 21465B09G00N000	PLATE, RELEASE	1	Rp3.000
17	09440-18035-000 SUB: 09440B18031N000	SPRING, CLUTCH	4	Rp6.000
18	21482-09G00-000 SUB: 21482B09G00N000	BOLT, CLUTCH SPRING	4	Rp3.000
19	09140-14022-000	NUT, CLUTCH SLEEVE HUB	1	Rp9.000
20	09160-14005-000	WASHER, CLUTCH SLEEVE HUB	1	Rp4.500
21	09164-14011-000	WASHER, CLUTCH SLEEVE WAVE	1	Rp4.000
22	09181-17018-000	WASHER, PRI DRIVEN GEAR	1	Rp8.000
23	21501-23F10-000 SUB: 21501B23F00N000	CLUTCH ASSY, SHOE	1	Rp282.000
24	09140-14022-000	NUT, SHOE CLUTCH	1	Rp9.000
25	09160-140051000	WASHER	1	-
26	09164-14011-000	WASHER	1	Rp4.000
27	23121-09G01-000 SUB: 23121B09G00N000	PIECE, CLUTCH PUSH	1	Rp11.500
28	DISCONTINUE SUB: 23220-23F00L000	ARM, CLUTCH RELEASE	1	-
29	09200-07005-000 SUB: 09200B07005N000	.PIN	1	Rp17.000
30	DISCONTINUE SUB: 04111-16158-000	.PIN	1	-
31	23230-20G00-000 SUB: 23230-09D01-000	GUIDE, RELEASE BALL OUTER	1	Rp33.000
32	23234-23F10-000 SUB: 23234B23F00N000	SPACER, RELEASE ARM	1	Rp24.000
33	DISCONTINUE SUB: 23250B35402N000	BALL, CLUTCH RELEASE	1	-
34	09140-12046-000	NUT, CLUTCH RELEASE ADJUST	1	Rp25.500
35	09160-10142-000 SUB: 09160-10085-000	WASHER, RELEASE ARM	1	Rp17.000
36	09262-15032-000 SUB: 09262B15032N000	BEARING, PUSH PIECE THRUST	1	Rp40.500
37	09280-12004-000 SUB: 09280B12004N000	O RING (D:1.9, ID:11.8)	1	Rp2.500
38	DISCONTINUE SUB: 09440B19025N000	SPRING, RELEASE ARM	1	-
