SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

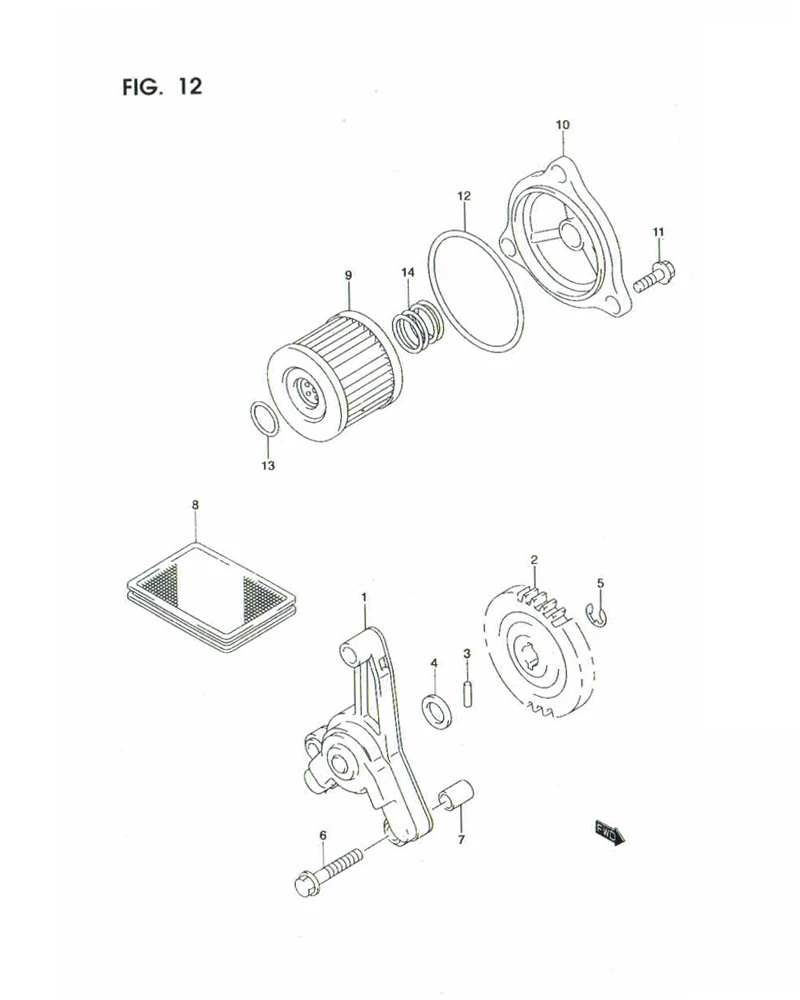

FIG.12 OIL PUMP

FIG.12 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16400-09G20-000
SUB: 16400-09G00-000		 PUMP ASSY, ENGINE OIL 1 Rp110.000
2 16331-09420-000 GEAR, OIL PUMP DRIVEN (NT:31) 1 Rp32.000
3 09261-02008-000 PIN 1 Rp10.500
4 DISCONTINUE
SUB: 09181-08139-000		 WASHER (8X14X1) 1 -
5 08332-1106A-000
SUB: 08332-11063-000		 E RING 1 Rp8.500
6 01547-0630A-000
SUB: 01547-06303-000		 BOLT 3 Rp6.500
7 04211-09129-000 PIN 2 Rp10.500
8 16520-45H01-000
SUB: 16520-30A00-000		 STRAINER, ENGINE OIL 1 Rp14.500
9 16510-45H20-000
SUB: 16510-05240-000		 FILTER, ENGINE OIL 1 Rp9.000
10 16512-09G00-000
SUB: 16512-18900-000		 CAP, OIL FILTER 1 Rp14.500
11 01547-0616A-000
SUB: 01547-06163-000		 BOLT 3 Rp6.500
12 09280-54001-000
SUB: 09280B54001N000		 O RING, OIL FILTER CAP (D:2.4, ID:52.6) 1 Rp3.000
13 09280-12009-000 O RING, OIL FILTER (D:1, ID: 12.6) 1 Rp17.500
14 DISCONTINUE
SUB: 09440B18002N000		 SPRING 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
