SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

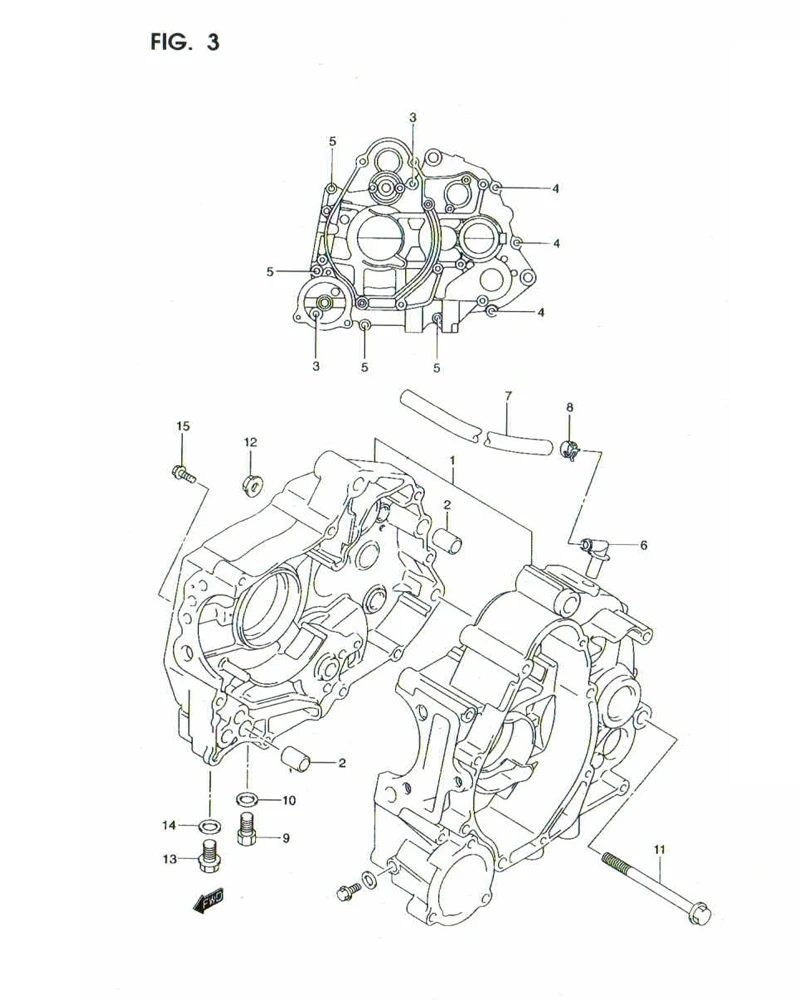

FIG. 3 CRANKCASE

FIG. 3 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11300B09G30N000		 CRANKCASE ASSY 1 -
2 04211M13189-000
SUB: 04211-13189-000		 PIN 2 Rp9.000
3 01547-0640B-000
SUB: 01547-06403-000		 SCREW 2 Rp7.000
4 01547-0650A-000
SUB: 01547-06503-000		 SCREW 3 Rp7.000
5 01547-0675A-000
SUB: 01547-06753-000		 SCREW 4 Rp7.500
6 DISCONTINUE
SUB: 16910-23F00-000		 UNION, BREATHER HOSE 1 -
7-1 09352-70119-600
SUB: 09352-70113-600		 HOSE, BREATHER 1 Rp86.500
7-2 09352-70113-340 HOSE, BREATHER 1 Rp12.500
8 09401-10409-000 CLIP 2 Rp7.500
9 01500-1016A-000
SUB: 01500-10163-000		 PLUG, OIL DRAIN 1 Rp7.500
10 09168-10L02-000
SUB: 09168-10002-000		 GASKET 1 Rp2.500
11 09103-10110-000 BOLT (L:100) SMC 2 Rp11.500
12 08319-3110A-000
SUB: 08319-31103-000		 NUT 2 Rp4.500
13 09247-10008-000 PLUG, OIL GALLERY (10X12) SMC) 1 Rp11.500
14 09168-10L02-000
SUB: 09168-10002-000		 GASKET 1 Rp2.500
15 01547-0610A-000
SUB: 01547-06123-000		 PLUG, OIL GALLERY THAI 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
