SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD FIG. 2 CYLINDER FIG. 3 CRANKCASE FIG. 4 CRANKCASE COVER FIG. 5 CRANKSHAFT FIG. 6 STARTER CLUTCH FIG. 7 CAM SAFT / VALVE FIG. 8 CAM CHAIN FIG. 9 CARBURETOR FIG. 10 AIR CLEANER FIG. 11 MUFFLER FIG.12 OIL PUMP FIG. 13 CLUTCH FIG. 14 TRANSMISSION FIG. 15 GEAR SHIFTING FIG. 16 KICK STARTER FIG. 17 STARTER MOTOR

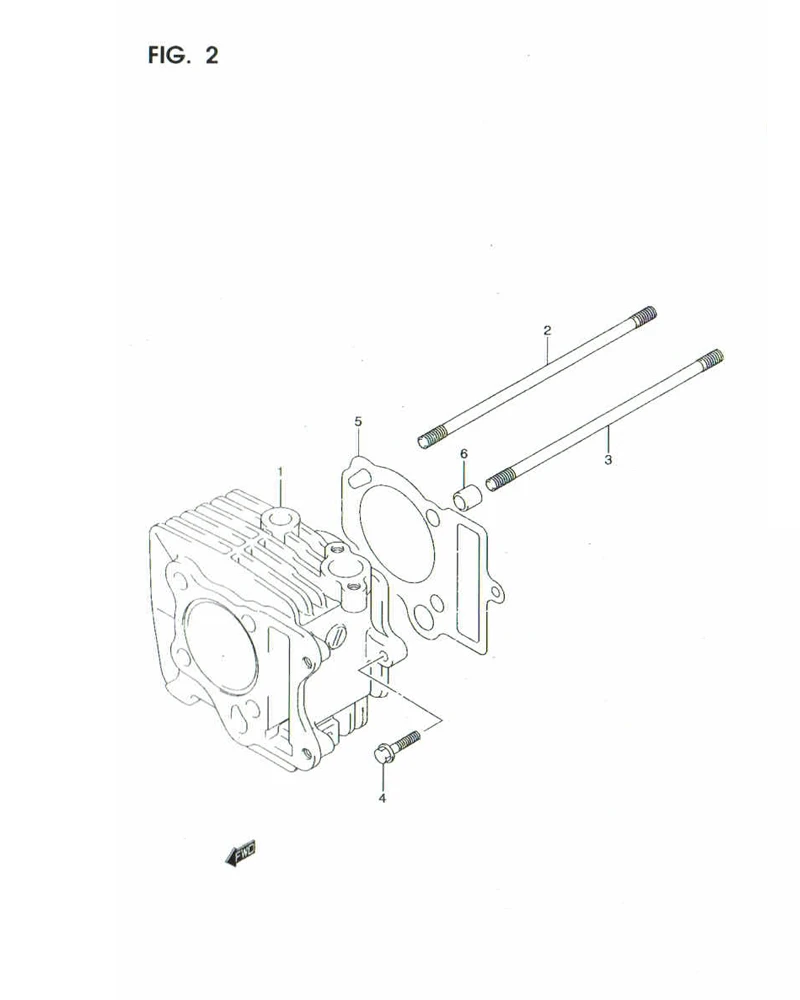

FIG. 2 CYLINDER

FIG. 2 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210B09G00N000	CYLINDER	1	-
2	09108-08171-000	STUD BOLT (8X192)	2	Rp52.500
3	09108-08263-000 SUB: 09108-08172-000	STUD BOLT (8X197)	2	Rp54.500
4	DISCONTINUE SUB: 01550B06253N000	STUDIO BOLT (6X25),1	0	-
5	11241-09G00-001 SUB: 11241B09G00N000	GASKET, CYLINDER	1	Rp11.000
6	04211-11129-000	PIN	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
