SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

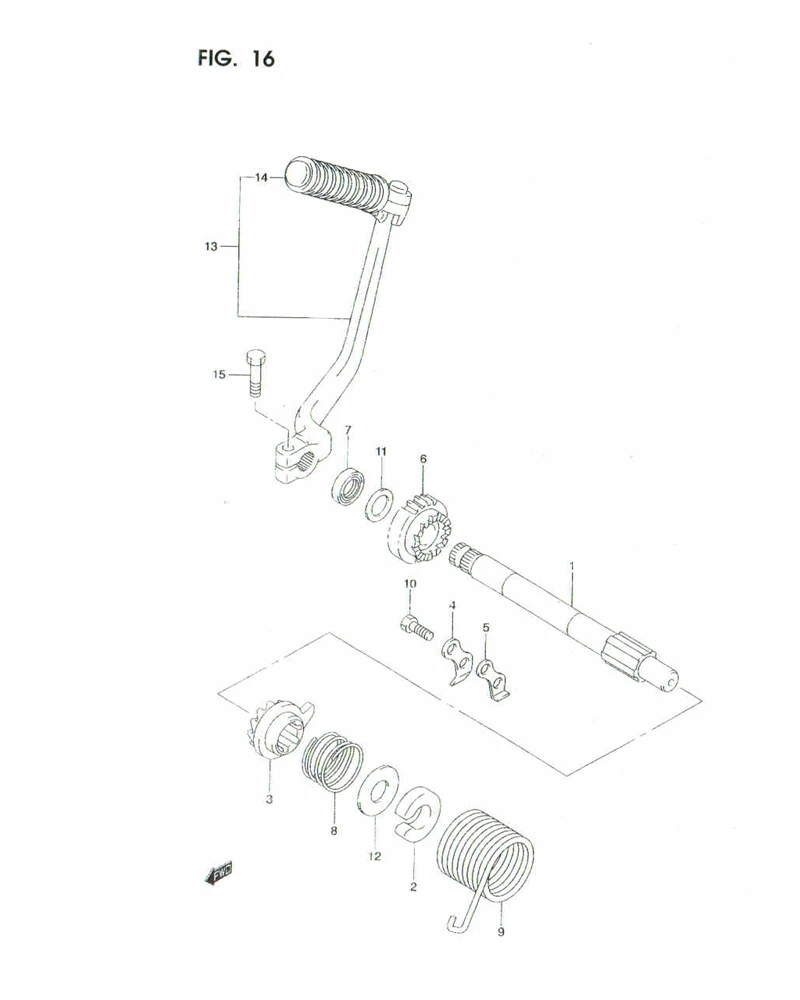

FIG. 16 KICK STARTER

FIG. 16 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26211-23F00-000 SHAFT, KICK STARTER 1 Rp81.000
2 26211-30A00-000 GUIDE, KICK STARTER SRP 1 -
3 26231-09430-000
SUB: 26231-09410-000		 STARTER, KICK 1 Rp61.500
4 26232-09410-000
SUB: 26232-09401-000		 GUIDE, KICK STARTER 1 Rp6.500
5 26233-09400-000 STOPPER, KICK STARTER 1 Rp3.000
6 DISCONTINUE
SUB: 26241-23F00-000		 GEAR, KICK STARTER DRIVE 1 -
7 09285-14001-000 SEAL, KICK STARTER 1 Rp8.000
8 09440-30007-000
SUB: 09440B30007N000		 SPRING, KICK STARTER 1 Rp3.000
9 09448-38004-000
SUB: 09448B38004N000		 SPRING, KICK SHAFT RETURN 1 Rp21.000
10 01500-0616A-000
SUB: 01500-06163-000		 BOLT, KICK STARTER STOPPER 2 Rp6.500
11 09181-14167-000 WASHER, KICK DRIVE GEAR 1 Rp13.000
12 08211-14321-000 PLATE, KICK STARTER SPRING 1 Rp10.500
13 26300-09G10-000
SUB: 26300B09G10N000		 LEVER ASSY, KICK STARTER 1 Rp59.500
14 26352B09D10N000 .RUBBER, KICK PEDAL 1 -
15 DISCONTINUE
SUB: 09100-08297-000		 BOLT, KICK PEDAL (8X25) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
