SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

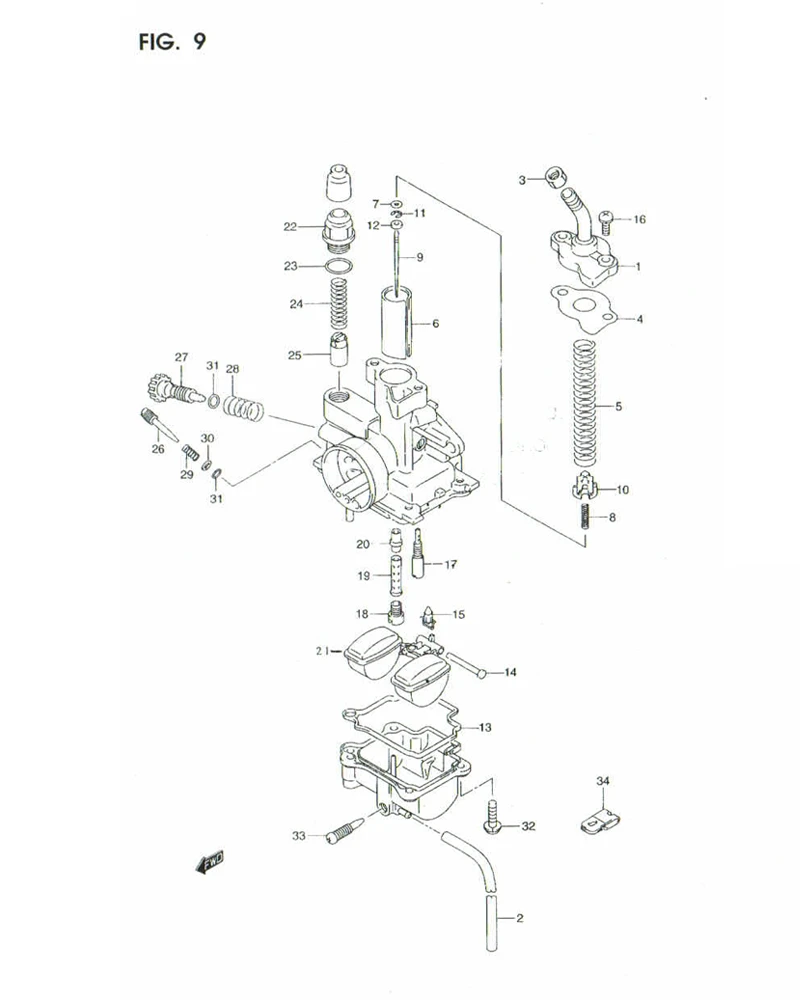

FIG. 9 CARBURETOR

FIG. 9 CARBURETOR
No No. Part Description Qty Price Per Pcs Remarks
0 13200-09G20-000 CARBURETOR 1 Rp485.000
1 13261-09G10-000 CAP ASSY, TOP 1 -
2 13684-09400-000
SUB: 13683-09410-000		 HOSE (2. 5X5X225) 1 Rp9.000
3 DISCONTINUE
SUB: 13661-02B00-000		 NUT 1 -
4 13249-30A10-000 GASKET 1 Rp9.000
5 13573-30D00-000 SPRING 1 Rp41.000
6 DISCONTINUE
SUB: 13551-09G10-000		 PISTON VALVE 1 -
7 13382-23F00-000 WASHER 1 Rp8.500
8 13481-23F00-000 SPRING 1 Rp8.500
9 13383-09G10-000 NEEDLE, JET (4PA11-2) 1 Rp22.500
10 13418-12F40-000 HOLDER 1 Rp12.500
11 13533-98410-000 E RING 1 Rp6.000
12 13387-09G10-000 RING 1 -
13 13258-30A00-000 PACKING 1 Rp9.000
14 13245-20010-000 PIN 1 -
15 13372-09G10-000 NEEDLE ASSY 1 Rp30.000
16 DISCONTINUE
SUB: 13601-04128-000		 SCREW 4 -
17 09492-12009-000 JET, PILOT (#12.5) 1 Rp28.000
18 09491-92011-000 JET, MAIN (#92.5) 1 Rp14.000
19 13385-09G20-000 .PIPE 1 Rp37.000
20 DISCONTINUE
SUB: 13341-09G10-000		 JET, NEEDLE (E-OM) 1 -
21 13250-30D00-000 .FLOOT ASSY 1 Rp32.500
22 13418-43410-000 HOLDER, GUIDE 1 Rp7.500
23 13278-47090-000 .O RING 1 Rp5.500
24 13417-01010-000 .SPRING 1 Rp6.500
25 13411-01010-000 .PLUNGER ASSY 1 Rp13.000
26 DISCONTINUE
SUB: 13267-09C80-000		 .ADJUSTER 1 -
27 13267-09D00-000 .ADJUST SCREW 1 -
28 DISCONTINUE
SUB: 13494-09410-000		 .SPRING 1 -
29 13494-35010-000 .SPRING 1 -
30 13291-29900-000 .WASHER 1 Rp6.500
31 13295-29900-000 .O RING 2 Rp8.000
32 13601-04148-000 .SCREW 4 Rp8.000
33 13247-09G10-000 SCREW, DRAIN 1 Rp21.000
34 DISCONTINUE
SUB: 13278-29C50-000		 O RING 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
