SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

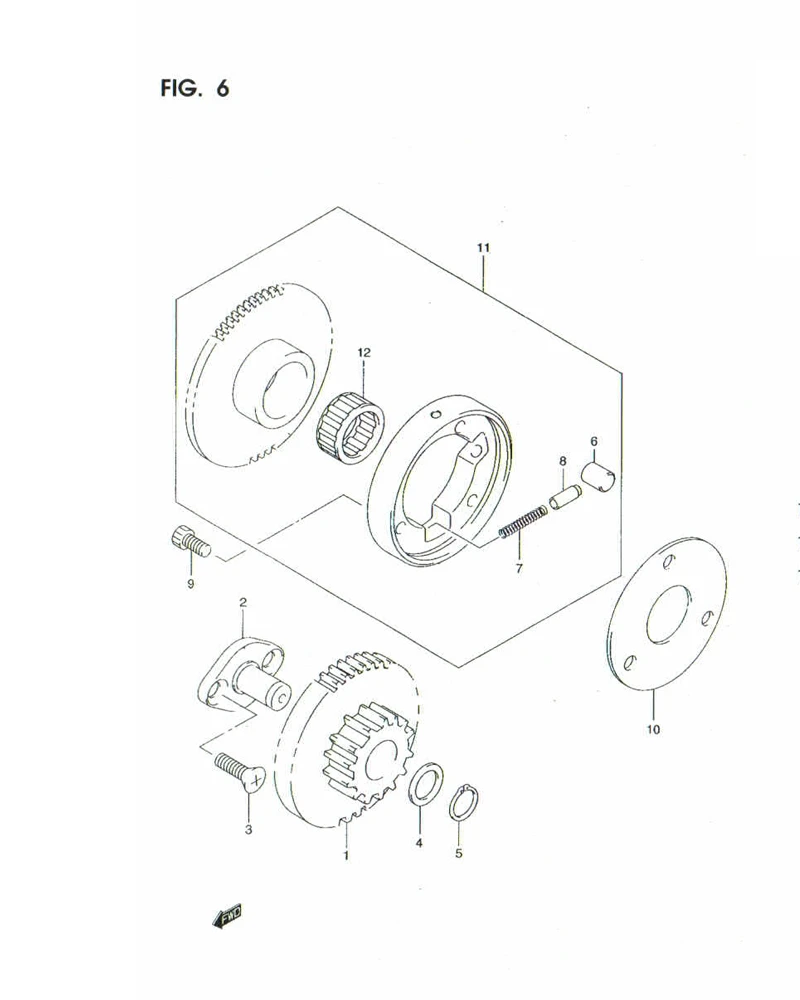

FIG. 6 STARTER CLUTCH

FIG. 6 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-23F00-000 GEAR, STARTER IDLE (NT:68/14) 1 Rp128.500
2 DISCONTINUE
SUB: 12612-23F00-000		 SHAFT, STARTER IDLE GEAR 1 -
3 02122-0616A-000
SUB: 02122-06163-000		 SCREW 2 Rp3.500
4 19160-13010-000 WASHER 1 -
5 08331-3113A-000
SUB: 08331-31136-000		 CIRCLIP 1 Rp13.000
6 09261-10003-000 ROLLER 3 Rp17.000
7 09440-03012-000 SPRING 3 Rp15.000
8 12633-05300-000 PIECE, PUSH 3 Rp49.500
9 07130-0612A-000
SUB: 07130-06123-000		 BOLT (6X10) 3 Rp3.500
10 12649-30D00-000 SHIM, CLUTCH HUB 1 Rp41.500
11 12600-23810-000 CLUTCH SET, STARTER 1 -
12 19263-20061-000 BEARING 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
