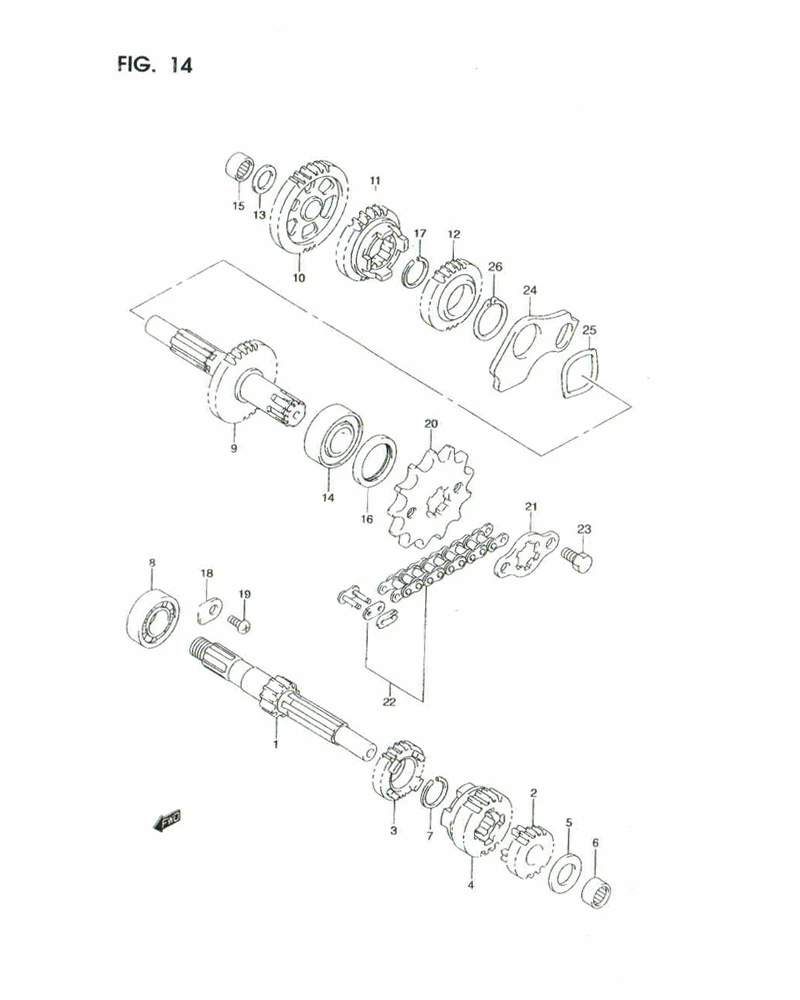

FIG. 14 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 24120B23F10N000	SHAFT, COUNTER (NT:11)	1	-
2	24221-35440-000 SUB: 24221B35440N000	GEAR, 2ND DRIVE (NT:16)	1	Rp61.000
3	24231-30A30-000 SUB: 24231B30A30N000	GEAR, 3RD DRIVE (NT:19)	1	Rp60.000
4	24241-23F20-000 SUB: 24241B23F20N000	GEAR, 4TH DRIVE (NT:19)	1	Rp80.000
5	DISCONTINUE SUB: 09160-13006-000	WASHER, 2ND DRIVE	1	-
6	09263-13003-000	BEARING, COUNTER LH	1	Rp27.000
7	09380-17007-000	CIRCLIP, 3RD DRIVE	1	Rp11.000
8	08110-62030-000	BEARING, COUNTER RH	1	Rp33.500
9	24130-09G00-000	SHAFT, DRIVE (NT:30)	1	Rp418.500
10	DISCONTINUE SUB: 24311B23F00N000	GEAR, 2ND DRIVE (NT:33)	1	-
11	DISCONTINUE SUB: 24331B30A30N000	GEAR, 3RD DRIVE (NT:26)	1	-
12	24341-23F20-000 SUB: 24341B23F20N000	GEAR, 4TH DRIVE (NT:20)	1	Rp82.500
13	DISCONTINUE SUB: 09160-13006-000	WASHER, 1ST DRIVEN	1	-
14	08110-62030-000	BEARING, DRIVE SHAFT LH	1	Rp33.500
15	09263-13003-000	BEARING, DRIVE SHAFT RH	1	Rp27.000
16	09283-17025-000 SUB: 09283B17025N000	SEAL, DRIVE SHAFT	1	Rp7.000
17	09380-17007-000	CIRCLIP, 4TH DRIVEN	1	Rp11.000
18	24741-20A10-000	RETAINER, COUNTERSHAFT BRG	1	Rp3.500
19	02112-0612A-000 SUB: 02112-06123-000	SCREW, COUNTER SHAFT	1	Rp3.500
20	27511-09G10-000 SUB: 27511B09G00N000	SPROCKET, ENGINE (NT:14)	1	Rp53.500
21	27512-09G00-000	PLATE, ENGINE SPROCKET	1	Rp8.500
22-1	27600-20940-098 SUB: 27600-20920L098	CHAIN ASSY, DRIVE (KMC.428)	1	Rp120.000
22-2	27600-20940-098 SUB: 27600-20960L098	CHAIN ASSY, DRIVE (RK-M 428)	1	Rp120.000
22-3	27600-20940-098 SUB: 27600-20910L098	CHAIN ASSY, DRIVE (ESCM 428)	1	Rp120.000
23	01500-0610A-000 SUB: 01500-06103-000	BOLT, ENGINE SPROCKET	2	Rp6.500
24	DISCONTINUE SUB: 25361-23F00-000	PLATE, ROTARY SHOP	1	-
25	DISCONTINUE SUB: 09164-25002-000	WASHER ROTARY WAVE	1	-
26	DISCONTINUE SUB: 08331-31256-000	CIRCLIP	0	-
