SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

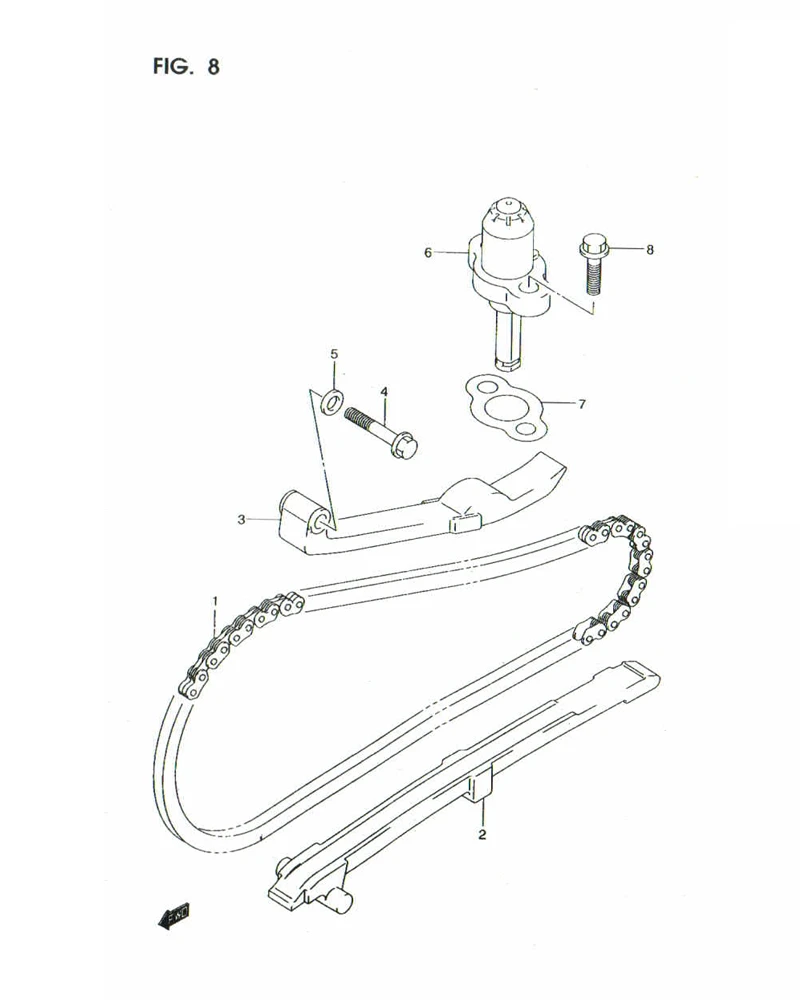

FIG. 8 CAM CHAIN

FIG. 8 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760B09G88N000 CHAIN, CAM SHAFT DRIVE 1 -
2 12771-09G00-000
SUB: 12771B09G00N000		 GUIDE, CAM CHAIN 1 Rp41.000
3 12811-09G00-000
SUB: 12811B09G00N000		 TENSIONER, CAM CHAIN 1 Rp41.500
4 091103-06247000 NOLT, CAM CHAIN TENSIONER 1 -
5 09168-06004-000 GASKET 1 Rp2.500
6 12830-09G00-000 AJUSTER ASSY, TENSIONER 1 Rp253.000
7 12837-09G00-001
SUB: 12837B09G00N000		 GASKET, TENSIONER ASJUSTER 1 Rp3.000
8 01547-0620B-000
SUB: 01547-06203-000		 BOLT(6X20) 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
