SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD FIG. 2 CYLINDER FIG. 3 CRANKCASE FIG. 4 CRANKCASE COVER FIG. 5 CRANKSHAFT FIG. 6 STARTER CLUTCH FIG. 7 CAM SAFT / VALVE FIG. 8 CAM CHAIN FIG. 9 CARBURETOR FIG. 10 AIR CLEANER FIG. 11 MUFFLER FIG.12 OIL PUMP FIG. 13 CLUTCH FIG. 14 TRANSMISSION FIG. 15 GEAR SHIFTING FIG. 16 KICK STARTER FIG. 17 STARTER MOTOR

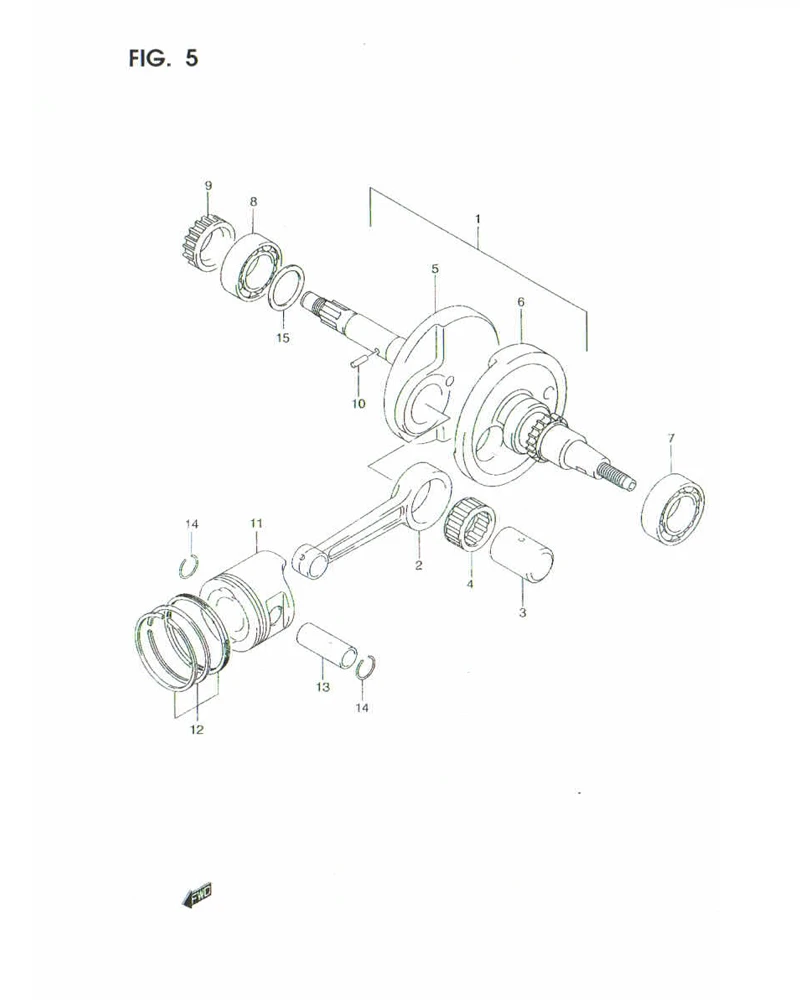

FIG. 5 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 12200B09G10N000	CRANKCASE ASSY	1	-
2	12161-09G00-000 SUB: 12161-09G00-0C0	ROD, CONNECTING	1	Rp84.500
3	12211-23FOO-0A0	PIN, CRANK	1	-
4	09263-28040-0B0 SUB: 09263-28029-0B0	BEARING	1	Rp50.500
5	DISCONTINUE SUB: 12221B09G00N000	CRANKSHAFT, RH	1	-
6	DISCONTINUE SUB: 12261B09G10N000	CRANKSHAFT, LH	1	-
7	09262-35063-000	BEARING, LH	1	Rp69.000
8	09262-25122-000 SUB: 09262B25122N000	BEARING, RH	1	Rp56.500
9	16321-23F01-000 SUB: 16321-23F00-000	GEAR, OIL PUMP DRIVE	1	Rp24.000
10	04221-03059-000	PIN	1	Rp10.500
11-1	12111BO9G00N0F0	PISTON (STD)	1	-
11-2	12111B09600N050	PISTON (OS,5)	1	-
11-3	12111-09G10-100 SUB: 12111B09G00N100	PISTON (OS,100)	1	Rp78.500
12-6	12140-23F10-100 SUB: 12140-23F00-100	RING SET, PISTON (OS,10)	1	Rp58.000
12-5	12140-23F10-050 SUB: 12140-23F00-050	RING SET, PISTON (OS,05)	1	Rp58.000
12-4	12140-23F00-0F0	RING SET, PISTON (STD)	1	-
12-2	12140-23F10-050 SUB: 12140B23F00N050	RING SET, PISTON (0S,05)	1	Rp58.000
12-1	12140-23F10-000 SUB: 12140B23F00N000	RING SET, PISTON (STD)	1	Rp58.000
12-3	12140-23F10-100 SUB: 12140B23F00N100	RING SET, PISTON (OS, 10)	0	Rp58.000
13	12151-30D01-000	PIN, PISTON	1	Rp90.500
14	09381-14001-000	CIRCLIP	2	Rp2.500
15-15	DISCONTINUE SUB: 09181-25181-000	SHIM (T:1.30)	1	-
15-14	09181-25179-000 SUB: 09181-25064-000	SHIM (T:1.25)	1	Rp24.500
15-13	DISCONTINUE SUB: 09181-25063-000	SHIM (T:1.20)	1	-
15-12	09181-25062-000	SHIM (T:1.15)	1	Rp19.500
15-11	09181-25061-000	SHIM (T:1.10)	1	Rp19.000
15-10	09181-25060-000	SHIM (T:1.05)	1	Rp18.500
15-9	09181-25167-000 SUB: 09181-25059-000	SHIM (T:1.00)	1	Rp18.000
15-8	09181-25058-000	SHIM (T:0.95)	1	Rp18.000
15-7	09181-25164-000 SUB: 09181-25057-000	SHIM (T:0.90)	1	Rp19.500
15-6	09181-25056-000	SHIM (T:0,0.85)	1	Rp18.500
15-5	09181-25162-000 SUB: 09181-25055-000	SHIM (T:0.80)	1	Rp17.000
15-4	0918-25054	SHIM (T:0.75)	1	Rp9.181
15-3	09181-25160-000 SUB: 09181-25053-000	SHIM (T:0.70)	1	Rp19.500
15-2	09181-25052-000	SHIM (T:0.65)	1	Rp18.000
15-1	09181-25051-000	SHIM (T:0.60)	1	Rp17.000
