SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 6 STARTER CLUTCHFIG. 7 CAM SAFT / VALVEFIG. 8 CAM CHAINFIG. 9 CARBURETORFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG.12 OIL PUMPFIG. 13 CLUTCHFIG. 14 TRANSMISSIONFIG. 15 GEAR SHIFTINGFIG. 16 KICK STARTERFIG. 17 STARTER MOTOR

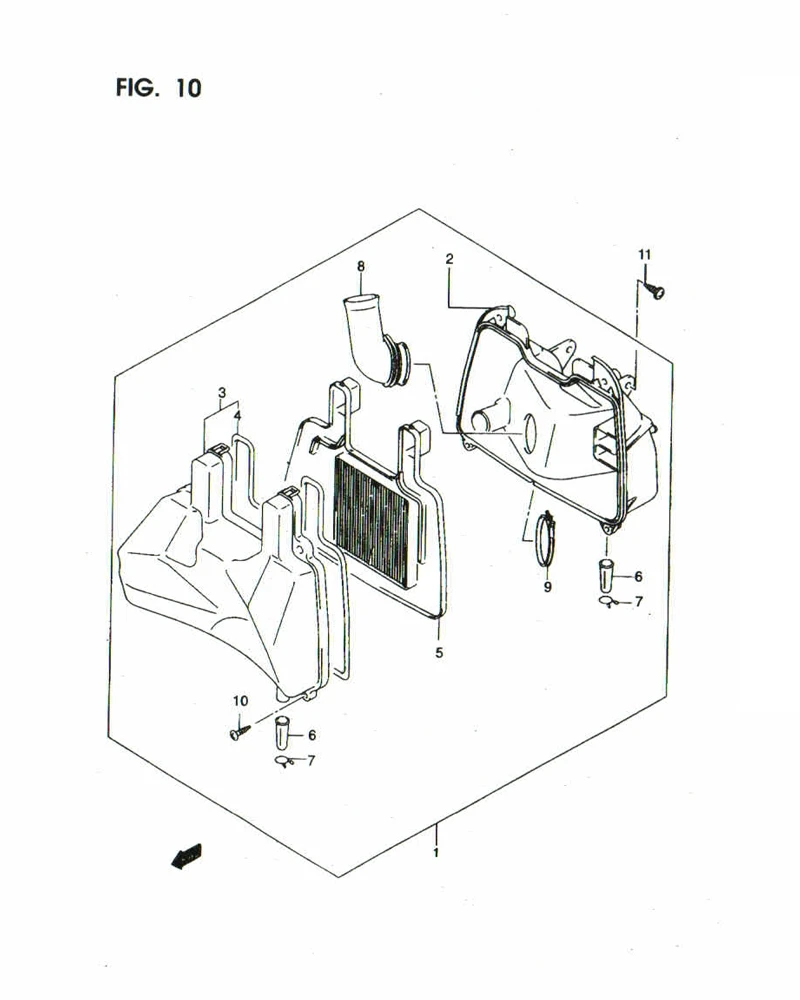

FIG. 10 AIR CLEANER

FIG. 10 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700B09G10N000 CLEANSER ASSY, AIR 1 -
2 13720-09G10-000
SUB: 13720B09G10N000		 .CAP, AIR CLEANER 1 Rp21.000
3 DISCONTINUE
SUB: 13740B09G10N000		 .CASE, AIR CLEANER 1 -
4 DISCONTINUE
SUB: 13746B09G00N000		 ..GASKET, AIR CLEANER CAP 1 -
5 13780-09G00-000
SUB: 13780B09G00N000		 .FILTER, AIR CLEANER 1 Rp46.000
6 13871-09G00-000
SUB: 13871B09G00N000		 .PLUG, DRAIN 2 Rp4.000
7 13824-18910-000
SUB: 13824B18910N000		 CLIP 2 Rp3.500
8 13881-09G00-000
SUB: 13881B09G00N000		 .TUBE, OUTLET 1 Rp18.000
9 19402B40208N000 .CLAMP 1 -
10 13541B05203N000 .SCREW 4 -
11 09136-06062-000
SUB: 09136B06017N000		 SCREW, AIR CLEANER 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
