SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

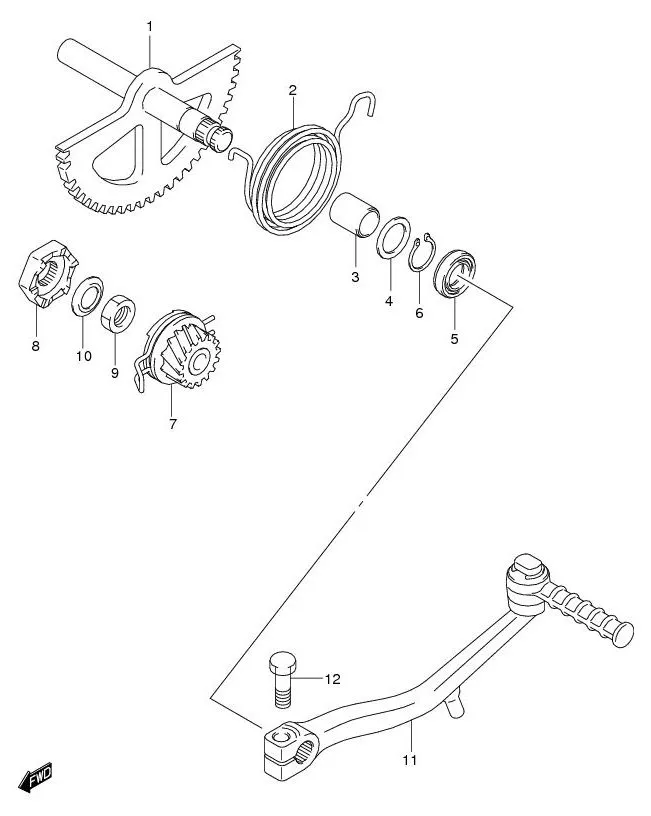

FIG.18 KICK STARTER

FIG.18 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26210-46G01-000
SUB: 26210B46G01N000		 SHAFT, KICK STARTER 1 Rp146.000
2 26212-41H00-000
SUB: 26212B41H00N000		 SPRING, KICK SHAFT RETURN 1 Rp18.500
3 DISCONTINUE
SUB: 26213B46F00N000		 BUSH, KICK SHAFT 1 -
4 09160-14053-000
SUB: 09160B14053N000		 WASHER, KICK SHAFT OUTER 1 Rp5.500
5 09283-14016-000
SUB: 09283B14008N000		 SEAL, KICK STARTER (14X24X6) 1 Rp13.000
6 08331-3114A-000 CIRCLIP, KICK SHAFT 1 Rp12.500
7 26200-46G10-000
SUB: 26200B46G10N000		 GEAR ASSY, KICK STARTER DRIVEN 1 Rp155.500
8 26231-33G00-000
SUB: 26231B33G00N000		 STARTER, KICK, R 1 Rp46.000
9 09140-12037-000
SUB: 09140B12037N000		 NUT, KICK STARTER 1 Rp8.500
10 09164-12020-000
SUB: 09164B12020N000		 WASHER, KICK START NUT LOCK 1 Rp9.500
11 26300-41H00-000
SUB: 26300B41H00N000		 LEVER ASSY, KICK STARTER 1 Rp59.500
12 26314-33G00-000
SUB: 26314B33G00N000		 BOLT, KICK STARTER LEVER 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
