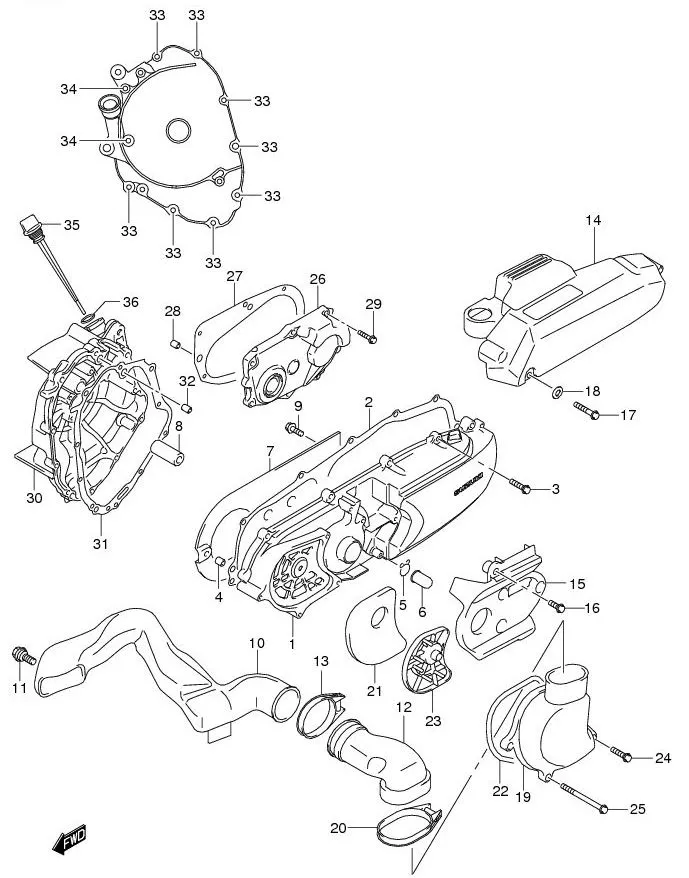

FIG.5 CRANKCASE COVER

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 11340B41H00N000	COVER, CLUTCH	1	-
2	11482-41H10-000 SUB: 11482B41H10N000	GASKET, CLUTCH COVER	1	Rp43.000
3	01547-0625A-000 SUB: 01547B0625AN000	BOLT	11	Rp6.500
4	09206-08008-000 SUB: 09206B08008N000	PIN	2	Rp4.000
5	11344-13H00-000 SUB: 11344B13H00N000	CLIP	1	Rp3.000
6	11345-13H00-000 SUB: 11345B13H00N000	PLUG, WATER DRAIN	1	Rp6.500
7	11346-46G00-000 SUB: 11346B46G00N000	PLATE, AIR INTAKE	1	Rp24.500
8	11347-46G00-000 SUB: 11347B46G00N000	SPACER, AIR INTAKE PLATE	1	Rp11.500
9	01547-0610A-000 SUB: 01547B0612AN000	BOLT	3	Rp3.000
10	11411-41H00-000 SUB: 11411B41H00N000	DUCT, BELT COOLING	1	Rp24.000
11	DISCONTINUE SUB: 09111-06085-000	BOLT (6X12)	1	-
12	DISCONTINUE SUB: 11361B41H00N000	JOINT, BELT COOLING DUCT	1	-
13	11385-41H00-000 SUB: 11385B41H00N000	CLAMP, BELT COOLING DUCT	1	Rp7.500
14	11371-41H40-000 SUB: 11371B41H30N000	COVER, CLUTCH UPPER NO.1	1	Rp83.500
15	11372-41H10-000 SUB: 11372B41H00N000	COVER, CLUTCH UPPER NO.2	1	Rp85.500
16	01547-0616A-000 SUB: 01547B0616AN000	BOLT	5	Rp6.500
17	01547-0630A-000 SUB: 01547B0630AN000	BOLT	2	Rp6.500
18	08322-0106A-000 SUB: 08322B0106AN000	WASHER	1	Rp2.500
19	DISCONTINUE SUB: 11381B41H00N000	COVER, BELT COOLING	1	-
20	11384-41H00-000	CLAMP	1	Rp21.500
21	11382-41H00-000 SUB: 11382B41H00N000	FILTER, BELT COOLING	1	Rp5.500
22	11383-41H00-000 SUB: 11383B41H00N000	O RING	1	Rp6.500
23	11386-41H00-000 SUB: 11386B41H00N000	PLATE, BELT COOLING COVER	1	Rp15.500
24	01547-0620B-000 SUB: 01547B0620AN000	BOLT	2	Rp6.500
25	01547-0665A-000 SUB: 01547B0665AN000	BOLT	2	Rp7.500
26	11431-46G00-000 SUB: 11431B46G00N000	COVER, GEAR BOX	1	Rp248.000
27	11484-46G10-000 SUB: 11484B46G10N000	GASKET, GEAR BOX COVER	1	Rp14.500
28	09206-08008-000 SUB: 09206B08008N000	PIN	2	Rp4.000
29	01547-0625A-000 SUB: 01547B0625AN000	BOLT	7	Rp6.500
30	DISCONTINUE SUB: 11351B41HB0N000	COVER, CRANKSHAFT, R	1	-
31	11483-46G10-000 SUB: 11483B46G10N000	GASKET, CRANKSHAFT, R	1	Rp21.500
32	09206-08008-000 SUB: 09206B08008N000	PIN	2	Rp4.000
33	01547-0630A-000 SUB: 01547B0630AN000	BOLT	8	Rp6.500
34	01547-0660A-000 SUB: 01547B0660AN000	BOLT	2	Rp7.500
35	DISCONTINUE SUB: 11971B33G01N000	GAUGE, OIL LEVEL	1	-
36	09280-17003-000 SUB: 09280-17003L000	O RING (D:3.1,ID:16.8)	1	Rp2.000
