SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

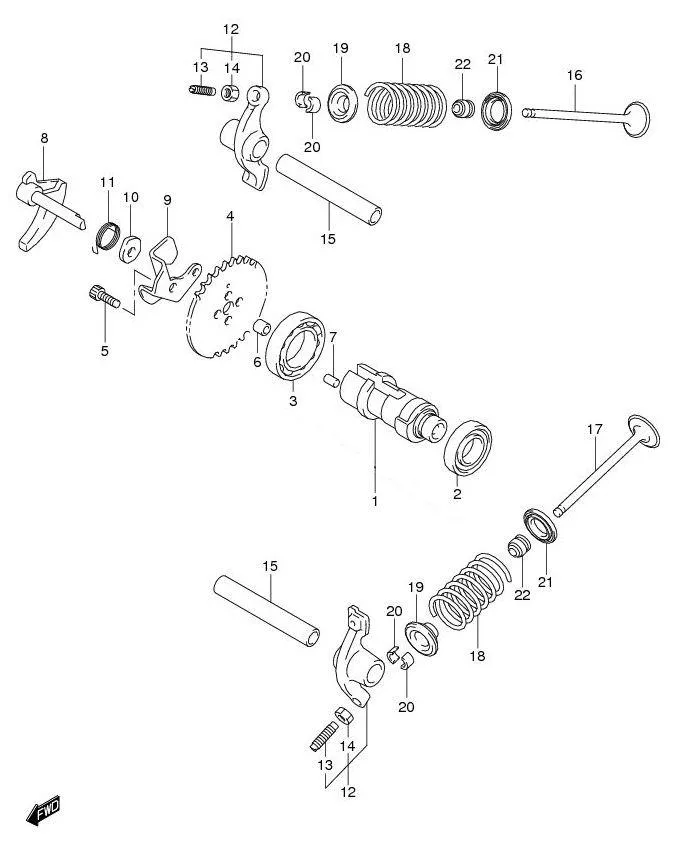

FIG.8 CAMSHAFT/VALVE

FIG.8 CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-41H00-000
SUB: 12710B41H00N000		 CAMSHAFT 1 Rp262.000
2 09262-15041-000
SUB: 09262B15041N000		 •BEARING, LH 1 Rp38.500
3 08110-69050-000
SUB: 08113B69050N000		 •BEARING, RH 1 Rp53.000
4 DISCONTINUE
SUB: 12741B41H10N000		 SPROCKET, CAMSHAFT 1 -
5 09106-05028-000
SUB: 09106B05028N000		 BOLT (5X15) 2 Rp6.500
6 09206-08008-000
SUB: 09206B08008N000		 PIN, SPROCKET KNOCK 1 Rp4.000
7 09261-05005-000
SUB: 09261B05005N000		 PIN 1 Rp3.000
8 12951-33G11-000 CAM, DECOMPRESSION 1 Rp149.000
9 DISCONTINUE
SUB: 12954B33G10N000		 STOPPER, DECOMP CAM 1 -
10 12955-33G00-000
SUB: 12955B33G00N000		 WASHER, DECOMP SHAFT 1 Rp11.500
11 12725-33G00-000
SUB: 12725B33G00N000		 SPRING, DECOMP CAM 1 Rp3.000
12 12840-41H00-000 ARM, VALVE ROCKER 2 Rp123.500
13 12842-41H00-000 •SCREW, TAPPET ADJUSTING 2 Rp22.500
14 12843-27A00-000 •NUT, TAPPET ADJUSTING 2 Rp19.000
15 12861-33G10-000
SUB: 12861B33G10N000		 SHAFT, VALVE ROCKER ARM 2 Rp16.500
16 12911-28G20-000
SUB: 12911B28G20N000		 VALVE, INTAKE 1 Rp45.000
17 12912-41H00-000
SUB: 12912B41H00N000		 VALVE, EXHAUST 1 Rp94.500
18 12921-28G40-000
SUB: 12921B28G50N000		 SPRING, VALVE 2 Rp21.000
19 12931-09G00-000
SUB: 12931B09G00N000		 RETAINER, VALVE SPRING 2 Rp13.000
20 12932-09G00-000 COTTER, VALVE 4 Rp4.500
21 12933-09G00-000
SUB: 12933B09G00N000		 SEAT, VALVE SPRING 2 Rp9.000
22 09289-05008-000
SUB: 09289-05008L000		 OIL SEAL (5X10.5X8.4) 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
