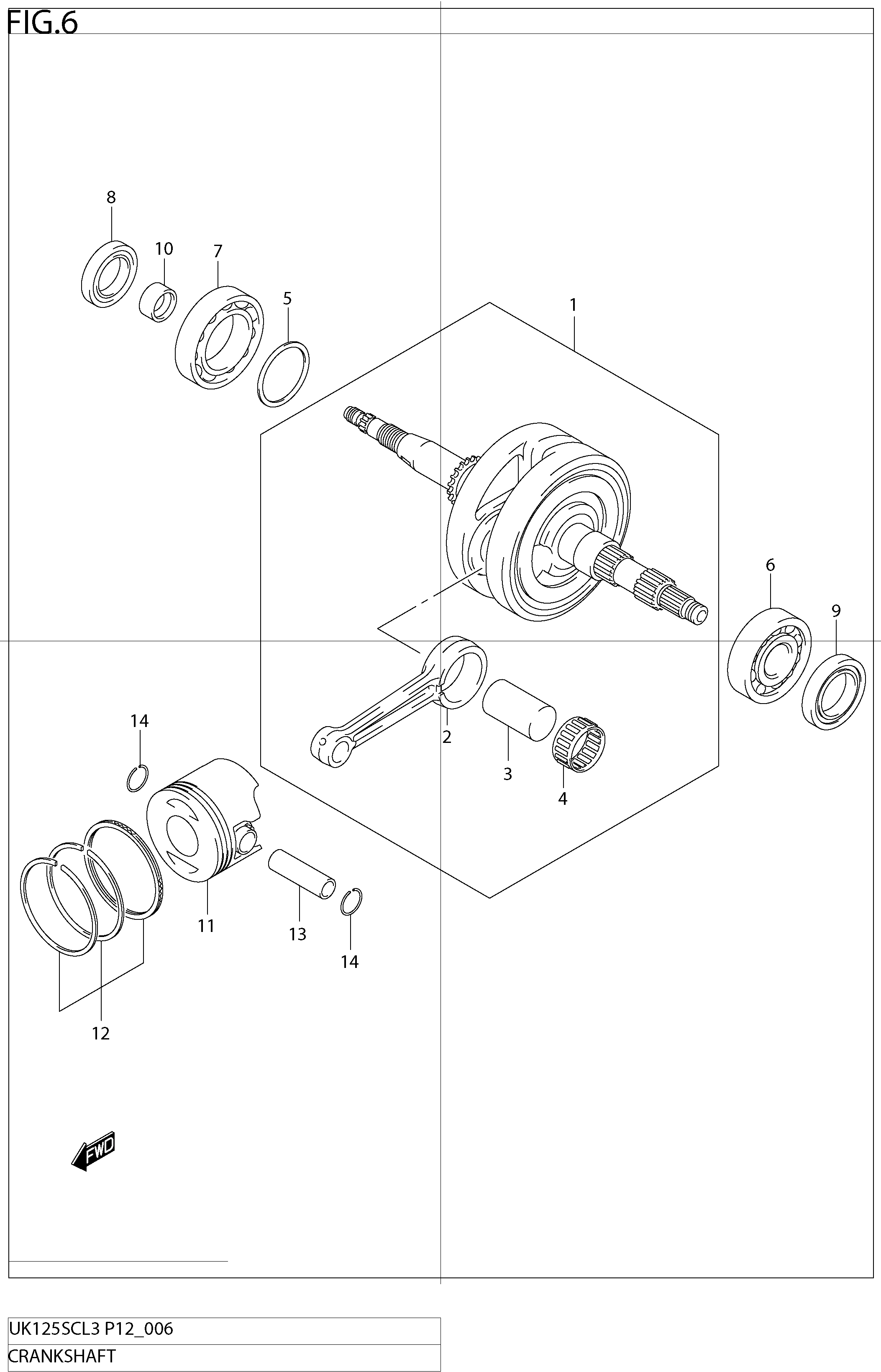

FIG.6 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 12200B41H01N000	CRANKSHAFT ASSY	1	-
2	12161-46G50-001 SUB: 12161B46G50N001	•CONNROD	1	Rp87.000
3	12210-46G00-0A0	•PIN, CRANK	1	Rp142.500
4	09263-28034-0B0 SUB: 09263B28034N0B0	•BEARING, CRANK PIN	1	Rp43.000
5-12	09181-35113-000	SHIM, 35X42X1.05	1	Rp10.500
5-17	09181-35125-000	SHIM, 35X42X1.3	1	Rp22.500
5-16	DISCONTINUE SUB: 09181-35123-000	SHIM, 35X42X1.25	1	-
5-15	DISCONTINUE SUB: 09181-35120-000	SHIM, 35X42X1.2	1	-
5-14	09181-35118-000	SHIM, 35X42X1.15	1	Rp22.500
5-13	09181-35116-000	SHIM, 35X42X1.1	1	Rp28.000
5-11	09181-35110-000	SHIM, 35X42X1.0	1	Rp34.000
5-10	DISCONTINUE SUB: 09181-35109-000	SHIM, 35X42X0.95	1	-
5-8	DISCONTINUE SUB: 09181-35107-000	SHIM, 35X42X0.85	1	-
5-7	DISCONTINUE SUB: 09181-35106-000	SHIM, 35X42X0.8	1	-
5-6	09181-35105-000	SHIM, 35X42X0.75	1	Rp10.000
5-5	09181-35104-000	SHIM, 35X42X0.7	1	Rp10.500
5-4	DISCONTINUE SUB: 09181-35026-000	SHIM, 35X42X0.65	1	-
5-3	DISCONTINUE SUB: 09181-35103-000	SHIM, 35X42X0.6	1	-
5-2	09181-35025-000	SHIM, 35X42X0.55	1	Rp18.000
5-1	09181-35101-000	SHIM, 35X42X0.5	1	Rp14.500
5-9	DISCONTINUE SUB: 09181-35108-000	SHIM, 35X42X0.9	1	-
6	09262-25L02-000 SUB: 09262B25165N000	BEARING, LH	1	Rp73.500
7	09262-35088-000 SUB: 09262B35088N000	BEARING, RH	1	Rp88.500
8	09283-22033-000 SUB: 09283B22033N000	OIL SEAL, RH	1	Rp73.000
9	09283-25095-001 SUB: 09283-25095-000	OIL SEAL, LH	1	Rp38.500
10	12359-41H00-000 SUB: 12359B41H00N000	SPACER, CRANKSHAFT RH	1	Rp28.500
11	12111-46G11-0F0 SUB: 12111B46G11N0F0	PISTON	1	Rp120.500
12	12140-46G10-000 SUB: 12140B46G10N000	RING SET, PISTON	1	Rp42.500
13	12151-20G00-000 SUB: 12151B20G00N000	PIN, PISTON	1	Rp18.000
14	09381-14001-000 SUB: 09381B14001N000	CIRCLIP	2	Rp2.500
