SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

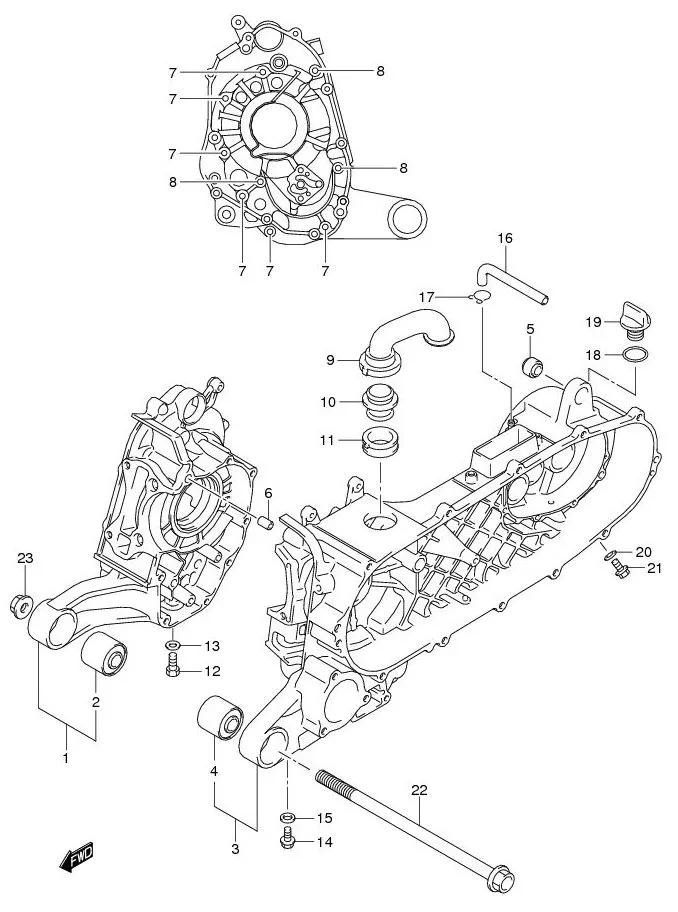

FIG.4 CRANKCASE

FIG.4 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11310B41H00N000		 CRANKCASE SET, RH 1 -
2 11315-41H10-000
SUB: 11315-41H00-000		 •BUSH, ENGINE MTG 1 Rp35.000
3 11320B41H10N000 CRANKCASE SET, LH 1 Rp234.000
4 11315-41H10-000
SUB: 11315-41H00-000		 •BUSH, ENGINE MTG 1 Rp35.000
5 11316-41H10-000
SUB: 11316B41H10N000		 •BUSH, 15X22.3X20 1 Rp72.000
6 09206-08008-000
SUB: 09206B08008N000		 PIN 2 Rp4.000
7 01547-0655A-000
SUB: 01547B0655AN000		 BOLT 6 Rp7.500
8 01547-0675A-000
SUB: 01547B0675AN000		 BOLT 3 Rp7.500
9 11325-46G00-000
SUB: 11325B46G00N000		 TUBE, CRANKCASE 1 Rp22.000
10 11326-46G00-000
SUB: 11326B46G00N000		 GROMMET, CRANKCASE TUBE 1 Rp4.000
11 DISCONTINUE
SUB: 11327B46G00N000		 GROMMET, CRANKCASE TUBE 1 -
12 01500-1016A-000
SUB: 01500B1016AN000		 PLUG, OIL DRAIN 1 Rp7.500
13 09168-10L02-000
SUB: 09168B10002N000		 GASKET (10X14X3.6) 1 Rp2.500
14 01550-0812A-000
SUB: 01550B0812AN000		 PLUG, OIL CHECK 1 Rp3.500
15 09168-08016-000
SUB: 09168B08016N000		 GASKET, 8.2X14X1 1 Rp25.000
16 DISCONTINUE
SUB: 11432B41H00N000		 HOSE, GEAR BOX BREATHER 1 -
17 09401-10401-000
SUB: 09401B10401N000		 CLIP, BREATHER HOSE 1 Rp5.500
18 DISCONTINUE
SUB: 11971B46G10N000		 PLUG, GEAR BOX OIL FILLER 1 -
19 09280-14011-000
SUB: 09280B14011N000		 O RING (D:2.5 ID:13.8) 1 Rp7.500
20 01550-0812A-000
SUB: 01550B0812AN000		 PLUG, GEAR BOX OIL DRAIN 1 Rp3.500
21 09168-08016-000
SUB: 09168B08016N000		 GASKET, 8.2X14X1 1 Rp25.000
22 09103-12046-000
SUB: 64711B09G00N000		 BOLT, L:204 1 Rp21.500
23 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
