SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

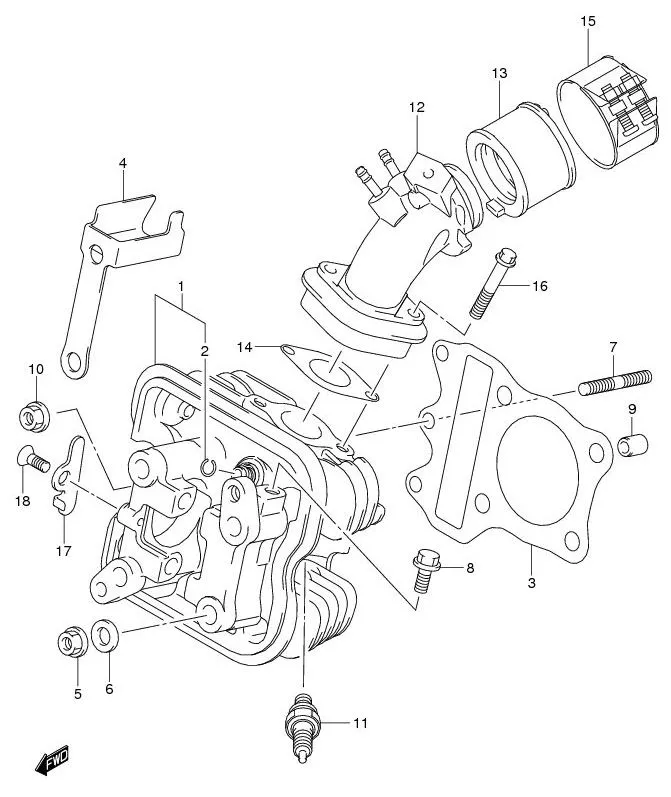

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11110B41H10N000		 HEAD, CYLINDER 1 -
2 09381-10004-000
SUB: 09381B10004N000		 •SNAP RING 2 Rp3.000
3 11141-46G10-000
SUB: 11141B46G10N000		 GASKET, CYLINDER HEAD 1 Rp20.500
4 DISCONTINUE
SUB: 11135B46G00N000		 PLATE, OIL SEPARATOR 1 -
5 08316-1008A-000
SUB: 08316B1008AN000		 NUT 4 Rp3.500
6 09160-08164-000
SUB: 09160B08164N000		 WASHER 2 Rp6.500
7 01421-0630B-000
SUB: 01421B0630AN000		 BOLT, STUD 1 Rp3.500
8 01547-0610A-000
SUB: 01547B0610AN000		 PLUG 1 Rp3.000
9 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000
10 08316-1006A-000
SUB: 08316B1006AN000		 NUT 3 Rp2.000
11-1 09482-00710-000
SUB: 09482-00710L000		 PLUG, SPARK (C6HSA) 1 Rp24.500
11-2 09482-00810-000
SUB: 09482-00810L000		 PLUG, SPARK (U20FS-U) 1 Rp18.500
12 DISCONTINUE
SUB: 13110B41H00N000		 PIPE, INTAKE NO.1 1 -
13 13121-41H00-000
SUB: 13121B41H00N000		 PIPE, INTAKE NO.2 1 Rp90.000
14 13125-46G20-000
SUB: 13125B46G10N000		 GASKET 1 Rp6.500
15 DISCONTINUE
SUB: 13170B41H00N000		 CLAMP 1 -
16 01547-0640B-000
SUB: 01547B0640AN000		 BOLT 2 Rp7.000
17 12862-33G00-000
SUB: 12862B33G00N000		 RETAINER, CAMSHAFT 1 Rp23.500
18 02122-0612A-000
SUB: 02122B0612AN000		 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
