SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVER FIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CAMSHAFT/VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 COOLING FAN FIG.15 2ND AIR FIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

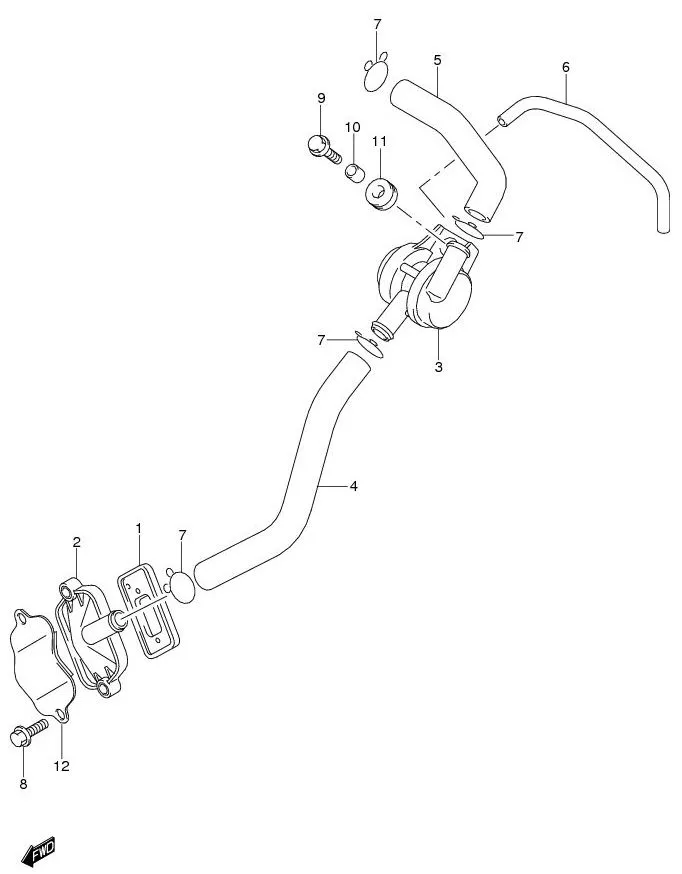

FIG.15 2ND AIR

FIG.15 2ND AIR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	18450-06G10-000 SUB: 18450B06G10N000	VALVE ASSY, 2ND AIR REED	1	Rp61.000
2	18531-46G00-000 SUB: 18531B46G00N000	COVER, 2ND AIR REED VALVE	1	Rp18.500
3	18510-41H10-000 SUB: 18510B41H10N000	VALVE ASSY, AIR CUT	1	Rp92.000
4	DISCONTINUE SUB: 18461B46G00N000	HOSE 2ND AIR VALVE	1	-
5	18711-41H00-000 SUB: 18711B41H00N000	HOSE 2ND AIR CLEANER	1	Rp59.500
6	18762-41H00-000 SUB: 18762B41H00N000	HOSE 2ND AIR VALVE VACUUM	1	Rp6.500
7	09401-15101-000 SUB: 09401B15101N000	CLIP	4	Rp3.000
8	01547-0620B-000 SUB: 01547B0620AN000	BOLT	2	Rp6.500
9	01547-0620B-000 SUB: 01547B0620BN000	BOLT	1	Rp6.500
10	09180-06247-000	SPACER (6.1X8X7)	1	Rp18.000
11	09320-07014-000 SUB: 09320B07014N000	CUSHION	1	Rp4.500
12	18750-46G00-000 SUB: 18750B46G00N000	PROTECTOR	1	Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
