SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVER FIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CAMSHAFT/VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 COOLING FAN FIG.15 2ND AIR FIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

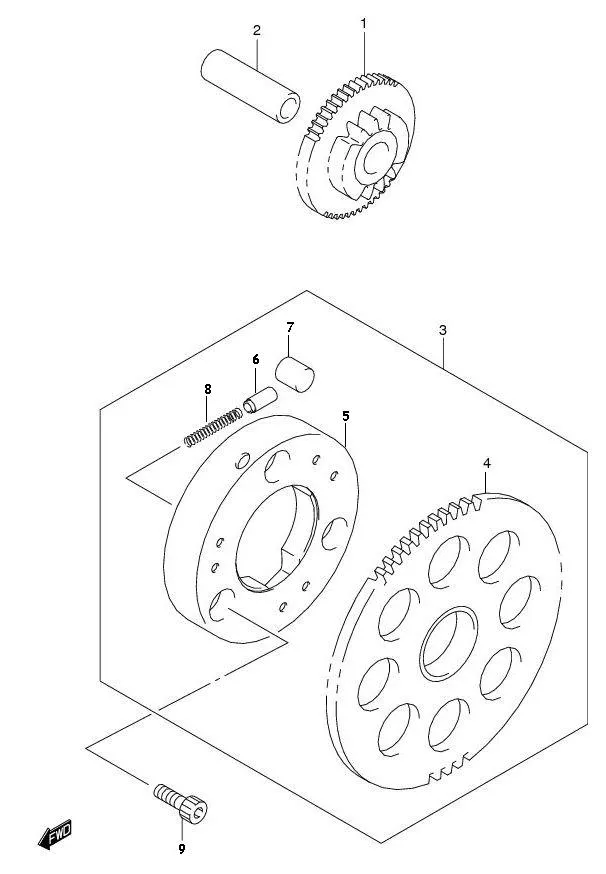

FIG.7 STARTER CLUTCH

FIG.7 STARTER CLUTCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12611-46G20-000 SUB: 12611-46G00-000	GEAR, STARTER IDLE	1	Rp74.500
2	09206-13007-000	PIN	1	Rp35.500
3	12620-46G00-000	GEAR COMP STARTER CLUTCH	1	Rp159.000
4	12630-41H00-000	CLUTCH STARTER ONE WAY	1	Rp250.000
5	12649-30D00-000	SHIM,STARTER CLUTCH HUB	1	Rp41.500
6	12633-05300-000	PIECE,STARTER CLUTCH PUSH	3	Rp49.500
7	09261-10007-000	ROLLER, STARTER CLUTCH	3	Rp12.000
8	DISCONTINUE SUB: 09440-03007-000	SPRING	3	-
9	07130-0612A-000	BOLT	3	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
