SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

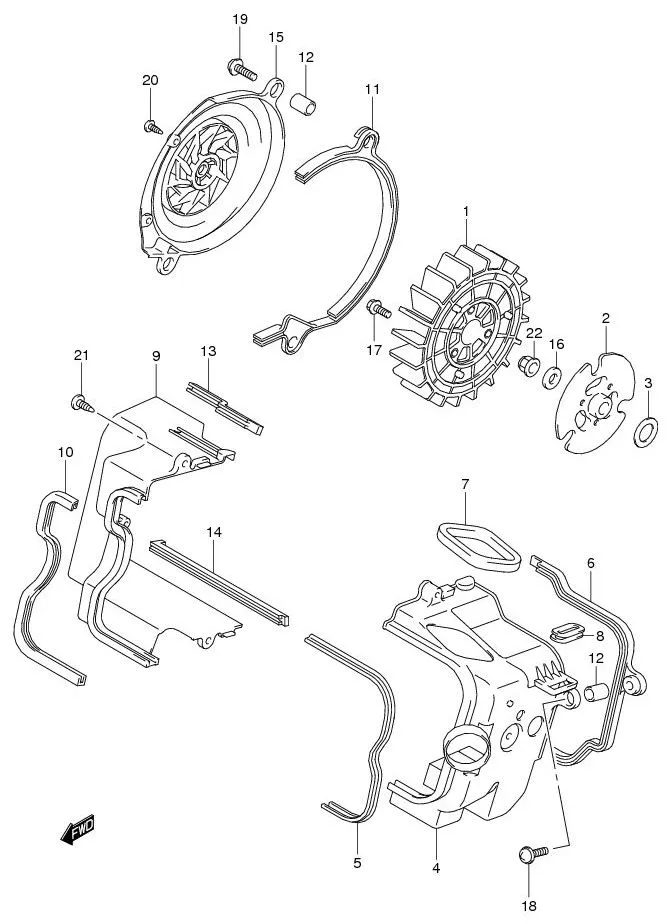

FIG.14 COOLING FAN

FIG.14 COOLING FAN
No No. Part Description Qty Price Per Pcs Remarks
1 17110-46G10-000
SUB: 17110B46G00N000		 FAN, COOLING 1 Rp86.000
2 DISCONTINUE
SUB: 17116B41H10N000		 HOLDER, COOLING FAN 1 -
3 DISCONTINUE
SUB: 17117B41H10N000		 GASKET, HOLDER 1 -
4 17121-41H00-000
SUB: 17121B41H00N000		 COWLING, CYLINDER 1 Rp47.500
5 17122-46G00-000
SUB: 17122B46G00N000		 MOLD, CYLINDER COWLING 1 Rp20.000
6 17123-46G00-000
SUB: 17123B46G00N000		 DAMPER, CYLINDER COWLING 1 Rp20.000
7 17125-46G00-000 GROMMET, INTAK PIPE HOLE 1 Rp4.000
8 17126-41H00-000
SUB: 17126B41H00N000		 CUSHION, CYLINDER COWLING 1 Rp8.000
9 17131-41H00-000
SUB: 17131B41H00N000		 COWLING, FAN NO.1 1 Rp33.500
10 17132-46G00-000
SUB: 17132B46G00N000		 MOLD, FANK COWLING 1 Rp12.500
11 17133-46G00-000
SUB: 17133B46G00N000		 DAMPER, FAN COWLING NO.1 1 Rp14.000
12 17134-20E00-000 SPACER, FAN COWLING 3 Rp24.500
13 17134-41H00-000
SUB: 17134B41H00N000		 DAMPER, FAN COWLING NO.2 1 Rp10.500
14 DISCONTINUE
SUB: 17135B41H00N000		 DAMPER, FAN COWLING NO.3 1 -
15 17141-41H00-000
SUB: 17141B41H00N000		 COWLING NO.2 1 Rp24.000
16 DISCONTINUE
SUB: 09168B10017N000		 GASKET (10.5X22X2.3) 1 -
17 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 3 -
18 02112-1625A-000
SUB: 02112B1625AN000		 SCREW 1 Rp3.500
19 02112-1625A-000
SUB: 02112B1625AN000		 SCREW 2 Rp3.500
20 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
21 03541-0620A-000
SUB: 03541B0620AN000		 SCREW 2 Rp15.500
22 08313-2010A-000 NUT 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
