SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

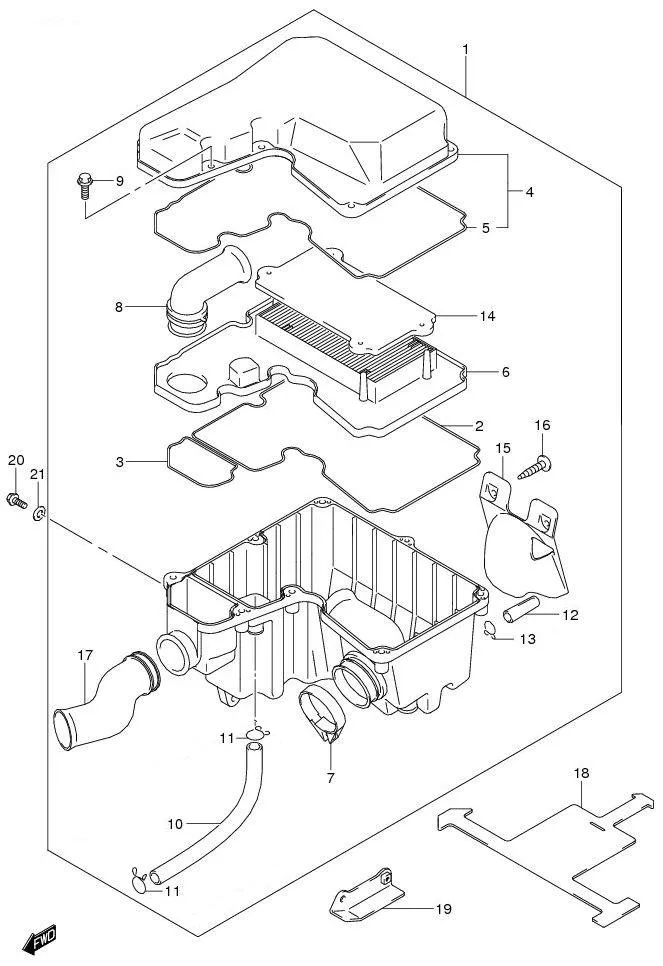

FIG.11 AIR CLEANER

FIG.11 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-41H30-000
SUB: 13700B41H10N000		 CLEANER ASSY, AIR 1 Rp258.000
2 13756-41H10-000
SUB: 13756B41H10N000		 •GASKET, A 1 Rp9.000
3 13757-41H10-000
SUB: 13757B41H10N000		 •GASKET, B 1 Rp7.000
4 13740-41H10-000
SUB: 13740B41H10N000		 •CAP, AIR CLEANER 1 Rp34.500
5 13746-41H10-000
SUB: 13746B41H10N000		 ••GASKET, CAP 1 Rp9.000
6 13780-41H10-000
SUB: 13780B41H10N000		 •FILTER ASSY, AIR CLEANER 1 Rp52.000
7 13826-46G01-000
SUB: 13826B46G01N000		 •CLAMP 1 Rp12.000
8 13891-41H10-000
SUB: 13891B41H10N000		 •TUBE, INLET 1 Rp18.500
9 13831-41H10-000
SUB: 13831B41H10N000		 •SCREW 8 Rp4.500
10 13853-41H30-000
SUB: 13853B41H10N000		 •TUBE, BREATHER 1 Rp17.000
11 09401-14301-000
SUB: 09401B14301N000		 ••CLIP 2 Rp4.500
12 13871-41H10-000
SUB: 13871B41H10N000		 •PLUG, DRAIN 1 Rp7.500
13 13824-18910-000
SUB: 13824B18910N000		 ••CLIP 1 Rp3.500
14 13785-41H10-000
SUB: 13785B41H10N000		 •FILTER, OUTER 1 Rp11.500
15 13738-41H10-000
SUB: 13738B41H10N000		 •GUARD, MUD 1 Rp22.000
16 03541-0520B-000
SUB: 03541B0520BN000		 •SCREW 2 Rp3.000
17 13896-41H10-000
SUB: 13896B41H10N000		 •DUCT, INLET 1 Rp17.000
18 DISCONTINUE
SUB: 13738B41H00N000		 GUARD, DUST 1 -
19 DISCONTINUE
SUB: 13760B41H00N000		 BRACKET, AIR CLEANER 1 -
20 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 3 Rp6.500
21 09160-06028-000
SUB: 09160B06028N000		 WASHER 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
