SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVER FIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CAMSHAFT/VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 COOLING FAN FIG.15 2ND AIR FIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

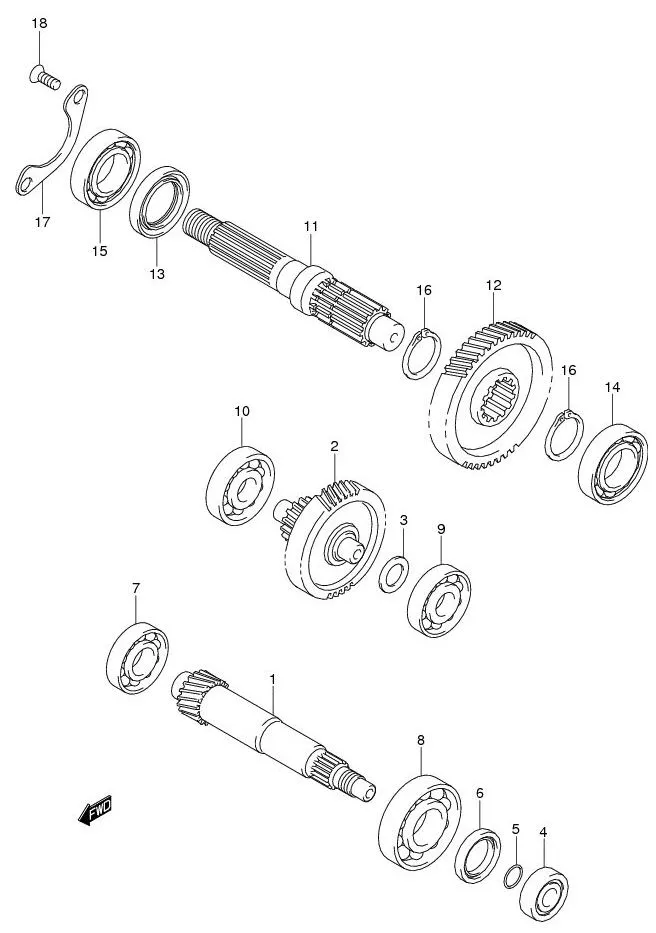

FIG.17 TRANSMISSION (2)

FIG.17 TRANSMISSION (2)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24131-41H00-000 SUB: 24131B41H00N000	SHAFT, DRIVE (NT:17)	1	Rp139.000
2	24150-41H00-000 SUB: 24150B41H00N000	SHAFT, IDLE (NT:13/48)	1	Rp158.500
3	09181-12167-000 SUB: 09181B12167N000	WASHER, IDLE SHAFT, L	1	Rp8.500
4	09262-10017-000 SUB: 09262B10017N000	BEARING, DRIVE SHAFT, L	1	Rp36.500
5	09280-10016-000	O RING (D:1.9,ID:9.8)	1	Rp19.500
6	09283-20060-001 SUB: 09283-20060-000	SEAL, DRIVE SHAFT OIL	1	Rp21.000
7	08110-60020-000 SUB: 08110B60020N000	BEARING, DRIVE SHAFT, R	1	Rp43.000
8	09262-20160-000 SUB: 09262B20160N000	BEARING, DRIVE SHAFT MIDDLE	1	Rp50.500
9	08113-62017-000 SUB: 08113-62017L000	BEARING, IDLE SHAFT, L	1	Rp23.500
10	08113-62017-000 SUB: 08113-62017L000	BEARING, IDLE SHAFT, R	1	Rp23.500
11	DISCONTINUE SUB: 24141B41H00N000	SHAFT, REAR AXLE	1	-
12	24371-41H00-000 SUB: 24371B41H00N000	GEAR, FINAL DRIVEN (NT:45)	1	Rp99.000
13	64841B28E00N000	SEAL, AXLE SHAFT OIL	1	Rp18.500	29X42X6.0
14	08110-62030-000 SUB: 08110-62030L000	BEARING, AXLE SHAFT, LH	1	Rp33.500
15	09262-22036-000 SUB: 09262B22036N000	BEARING, AXLE SHAFT, RH	1	Rp88.500
16	08331-3124A-000	CIRCLIP, FINAL DRIVEN GEAR	2	Rp15.000
17	24751-09J00-000 SUB: 24751B07900N000	RETAINER, AXLE SHAFT BEARING	1	Rp13.500
18	02122-0616A-000 SUB: 02122B0616AN000	SCREW, BEARING RETAINER	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
