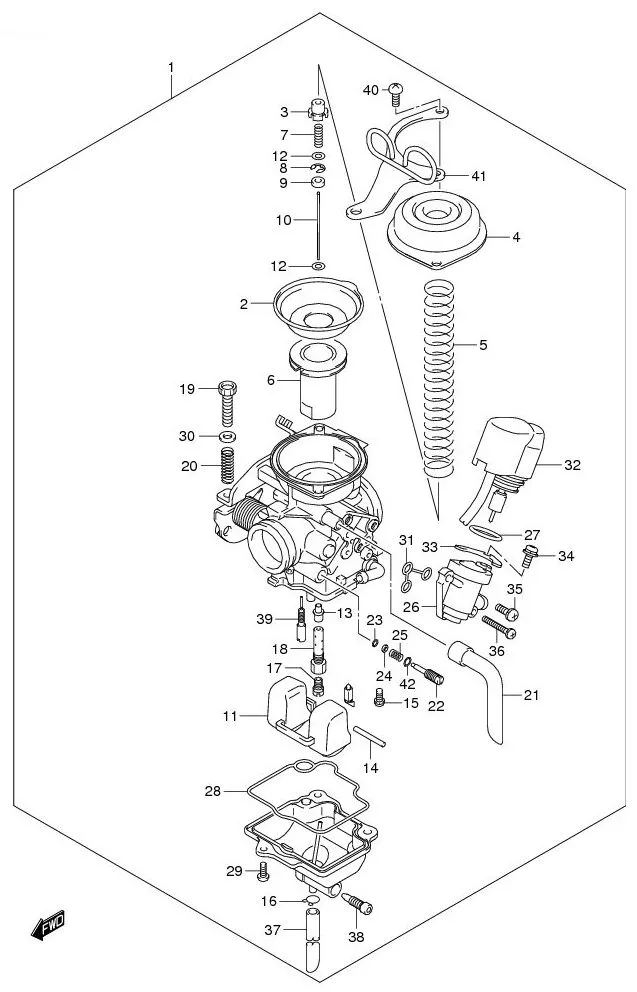

FIG.10 CARBURETOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13200-41H20-000	CARBURETOR ASSY	1	Rp1.160.500
2	13507-25G00-000	Â¥DIAPHRAGM	1	Rp24.500
3	13418-12F40-000	Â¥HOLDER	1	Rp12.500
4	13502-46G10-000	Â¥COVER, DIAPHRAGM	1	Rp32.500
5	13573-46G00-000	Â¥SPRING	1	Rp10.000
6	13502-46G00-000	Â¥VALVE ASSY, PISTON	1	Rp39.000
7	13481-23F00-000	Â¥SPRING	1	Rp8.500
8	13533-98410-000	Â¥E RING	1	Rp6.000
9	13387-23F00-000	Â¥RING	1	Rp8.500
10	13383-41H00-000	Â¥NEEDLE, JET (4FN01)	1	Rp20.000
11	13240-47E00-000	Â¥FLOAT ASSY	1	Rp33.500
12	13382-23F00-000	Â¥WASHER	2	Rp8.500
13	13341-13H10-000	Â¥JET, NEEDLE (E-0M)	1	Rp25.500
14	13254-20010-000	Â¥PIN, FLOAT	1	Rp7.500
15	02112-04083-000	Â¥SCREW	1	Rp7.500
16	13259-98010-000 SUB: 13529-98010-000	Â¥CLIP	1	Rp9.500
17	09491-92003-000	Â¥JET, MAIN (92.5)	1	Rp8.500
18	13342-46G00-000	Â¥HOLDER, JET	1	Rp34.000
19	13267-20E20-000	Â¥SCREW	1	Rp45.500
20	DISCONTINUE SUB: 13268-054A0-000	Â¥SPRING	1	-
21	13686-46G00-000	Â¥HOSE	1	Rp11.500
22	13279-23F30-000	Â¥ADJUSTER	1	Rp31.500
23	13295-29900-000	Â¥O RING	1	Rp8.000
24	13291-29900-000	Â¥WASHER	1	Rp6.500
25	13268-47070-000	Â¥SPRING	1	Rp8.000
26	13412-41H00-000	Â¥BODY ASSY, STARTER	1	-
27	13278-41H00-000	Â¥O RING	1	Rp9.500
28	13258-23F00-000	Â¥O RING	1	Rp13.500
29	13602-38A10-000	Â¥SCREW	3	Rp8.500
30	13343-38230-000	Â¥WASHER	1	Rp8.500
31	13258-46G00-000	Â¥O RING	1	Rp8.000
32	13410-41H00-000	Â¥PLUNGER ASSY	1	Rp237.000
33	15714-41H00-000	Â¥PLATE	1	Rp13.500
34	13602-55A00-000	Â¥SCREW	1	-
35	02112-35127-000	Â¥SCREW	2	Rp9.500
36	02112-34256-000	Â¥SCREW	1	-	CUT AS REQUIRED
37	DISCONTINUE SUB: 13683-36A00-000	Â¥HOSE	1	-
38	13247-25600-000 SUB: 13247-25G00-000	Â¥SCREW, DRAIN	1	Rp8.500
39	09492-15011-000	Â¥JET, PILOT (15)	1	Rp21.000
40	13602-05108-000	Â¥SCREW	2	Rp8.500
41	13270-41H00-000	Â¥PLATE	1	Rp68.500
42	13509-17C00-000	Â¥O RING	1	Rp7.500
