SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

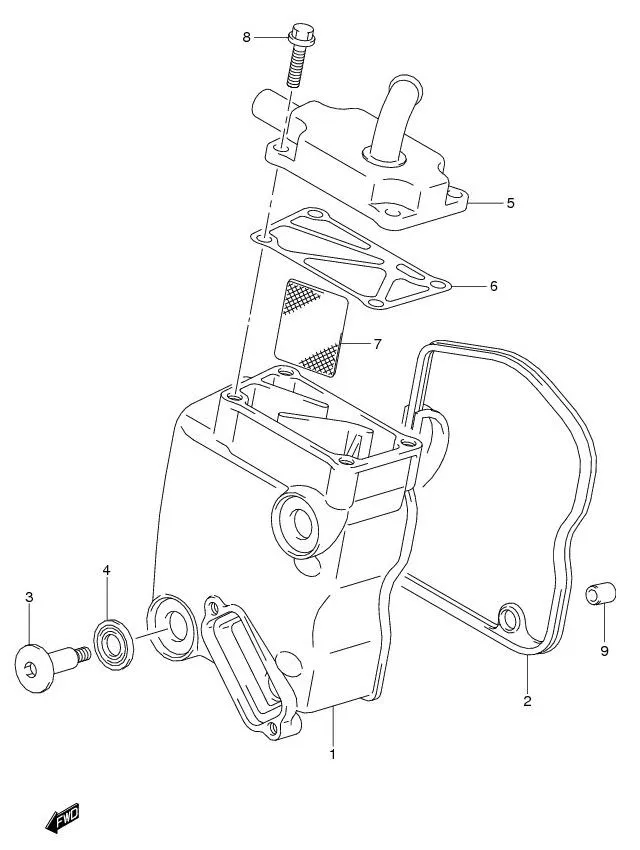

FIG.1 CYLINDER HEAD COVER

FIG.1 CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11171-46G00-000
SUB: 11171B46G00N000		 COVER, CYLINDER HEAD 1 Rp86.000
2 11173-46G10-000
SUB: 11173B46G10N000		 GASKET, CYLINDER HEAD COVER 1 Rp35.500
3 09106-07010-000 BOLT, 7X31 2 Rp26.000
4 11191-27E40-000
SUB: 11191B27E40N000		 WASHER 2 Rp13.000
5 DISCONTINUE
SUB: 11180B41H00N000		 COVER, BREATHER 1 -
6 11177-46G10-000
SUB: 11177B46G10N000		 GASKET, BREATHER COVER 1 Rp5.500
7 11186-46G10-000
SUB: 11186B46G10N000		 SEPARATOR, OIL BREATHER 1 Rp39.500
8 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 4 Rp6.500
9 09206-08008-000
SUB: 09206B08008N000		 PIN 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
