SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

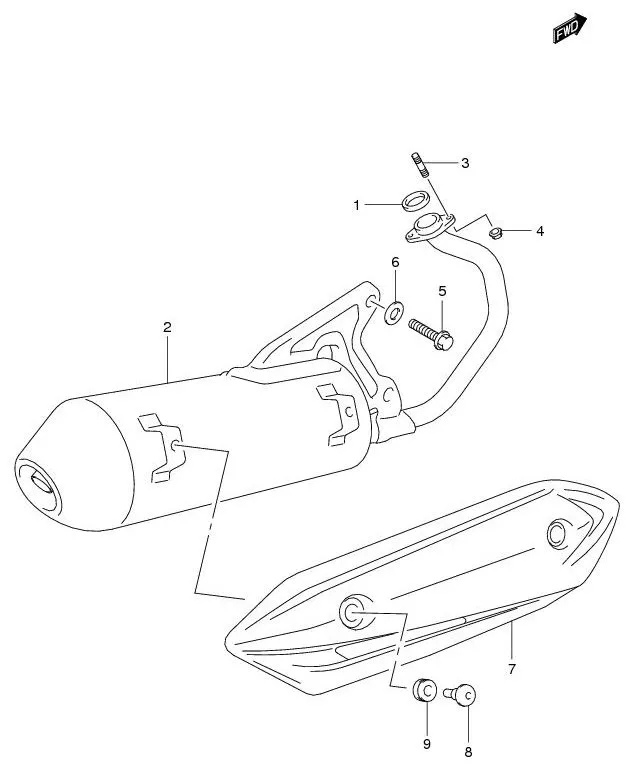

FIG.12 MUFFLER

FIG.12 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-09D10-000
SUB: 14181B46G00N000		 GASKET, EXH PIPE 1 Rp9.000
2 14310-41H40-000
SUB: 14310B41H10N000		 BODY, MUFFLER 1 Rp2.593.500
3 DISCONTINUE
SUB: 01421B0820AN000		 BOLT, EXH PIPE STUD 2 -
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT, EXH PIPE 2 Rp3.500
5 01550-1040B-000
SUB: 01550B1040BN000		 BOLT 2 Rp6.500
6 DISCONTINUE
SUB: 09160-10119-000		 WASHER 2 -
7 14781-41H10-000
SUB: 14781B41H10N000		 COVER, MUFFLER 1 Rp71.000
8 09139-06087-000
SUB: 09139B06087N000		 SCREW 2 Rp15.500
9 09320-08503-000
SUB: 09320B08503N000		 CUSHION 2 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
