SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVER FIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CAMSHAFT/VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 COOLING FAN FIG.15 2ND AIR FIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

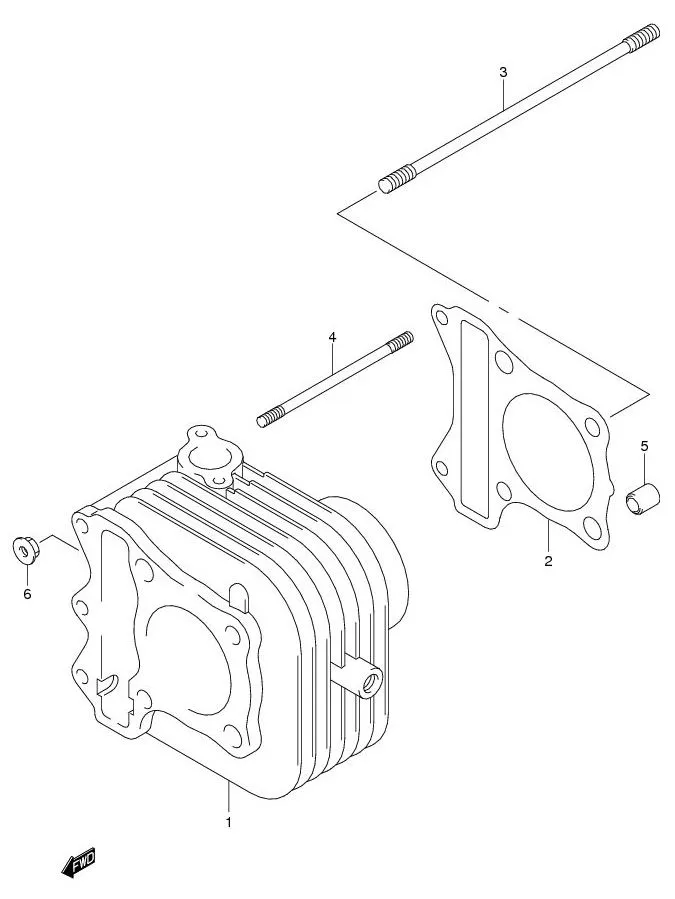

FIG.3 CYLINDER

FIG.3 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11211-33G10-0F0 SUB: 11211B33G01N0F1	CYLINDER	1	Rp404.000
2	11241-41H10-000 SUB: 11241B41H10N000	GASKET, CYLINDER	1	Rp8.000
3	09108-08272-000	BOLT, STUD (L:185)	4	Rp26.500
4	01421-0695A-000 SUB: 01421B0695AN000	BOLT, STUD (L:95)	1	Rp7.000
5	09108-06026-000 SUB: 09108B06026N000	BOLT, STUD (L:105)	1	Rp4.500
6	04211-11129-000 SUB: 04211B11129N000	PIN	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
