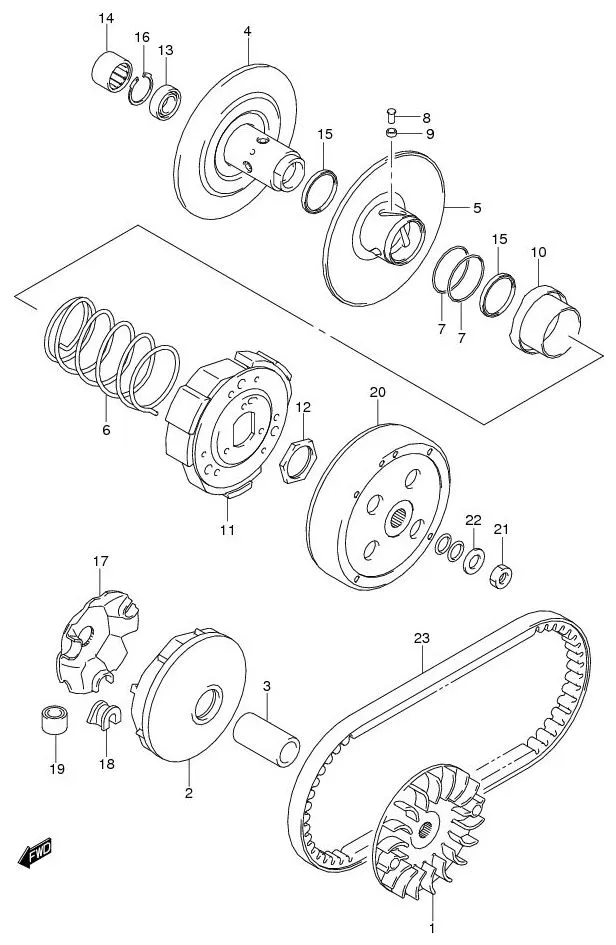

FIG.16 TRANSMISSION (1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21111-33G00-000 SUB: 21111B33G00N000	FACE, FIXED DRINE	1	Rp76.500
2	21120-41H00-000 SUB: 21120B41H00N000	FACE, MOVABLE DRIVE	1	Rp215.000
3	21125-33G00-000 SUB: 21125B33G00N000	SPACER, MOVABLE DRIVE	1	Rp68.000
4	21210-41H00-000 SUB: 21210B41H00N000	FACE, FIXED DRIVEN	1	Rp228.500
5	21240-33G01-000 SUB: 21240B33G01N000	FACE, MOVABLE DRIVEN	1	Rp213.500
6	21243-33G00-001 SUB: 21243B33G00N000	SPRING, MOVABLE DRIVEN	1	Rp32.500
7	21245-33G00-000 SUB: 21245B33G00N000	O RING, MOVABLE DRIVEN	2	Rp12.500
8	21248-33G00-001 SUB: 21248B33G00N000	PIN, MOVABLE DRIVEN	3	Rp12.500
9	21249-33G00-000 SUB: 21249B33G00N000	SPACER, MOVABLE DRIVEN PIN	3	Rp4.500
10	21471-33G00-001 SUB: 21471B33G00N000	SHEET, MOVABLE DRIVEN	1	Rp21.000
11	21501-13H50-000 SUB: 21501B41H00N000	CLUTCH ASSY, SHOE	1	Rp564.500
12	09140-28004-000 SUB: 09140B28004N000	NUT, SHOE CLUTCH	1	Rp8.000
13	09262-15051-000 SUB: 09262B15051N000	BEARING, FIXED DRIVEN, L	1	Rp69.000
14	09263-20105-000 SUB: 09263B20105N000	BEARING, FIXED DRIVEN, R	1	Rp107.500
15	09284-34003-000 SUB: 09284B34003N000	SEAL, MOVABLE DRIVEN OIL	2	Rp21.500	34X39X3
16	09381-24005-000 SUB: 09381B24005N000	CIRCLIP, FIXED DRIVEN	1	Rp8.000
17	21431-41H00-000 SUB: 21431B41H00N000	PLATE, MOVABLE DRIVE	1	Rp43.500
18	21481-33G40-000 SUB: 21481B33G00N000	DAMPER, MOVABLE DRIVE PLATE	3	Rp9.500
19	21650-33G80-000 SUB: 21650B33G80N000	ROLLER, MOVABLE DRIVE	6	Rp18.000
20	21220-41H00-000 SUB: 21220B41H00N000	HOUSING, CLUTCH	1	Rp159.500
21	09140-12039-000 SUB: 09140B12039N000	NUT, CLUTCH HOUSING	1	Rp6.500
22	09164-12020-000 SUB: 09164B12020N000	WASHER, CLUTCH HOUSING	1	Rp9.500
23	27601-46G10-000 SUB: 27601B46G10N000	V-BELT, DRIVE	1	Rp237.500
