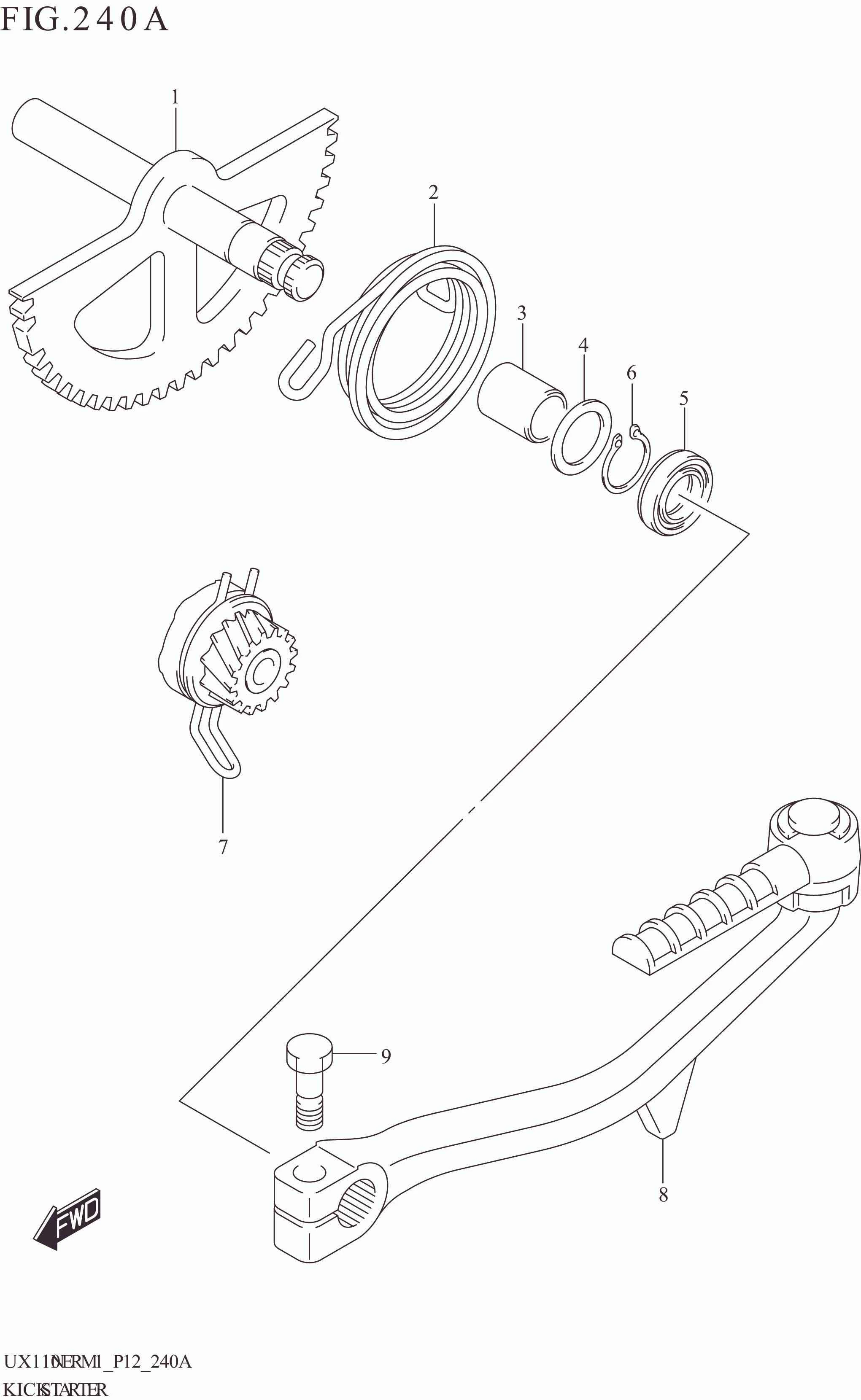

FIG. 240A KICK STARTER

FIG. 240A KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26210-09J10-000 SHAFT,KICK STARTER (NT:56) 1 Rp118.000
2 26212-46G20-000
SUB: 26212-46G00-000		 SPRING,KICK STARTER SHAFT 1 Rp13.000
3 26213-09J00-000 BUSH,KICK SHAFT 1 Rp5.500
4 09160-14053-000 WASHER (14.5X22X0.8) 1 Rp5.500
5-1 09283-14013-000
SUB: 09283-14009-000		 OIL SEAL (14X24X6) 1 Rp5.500
5-2 09283-14016-000 SEAL,OIL (14X24X6) 1 Rp13.000
6 08331-31149-000 CIRCLIP 1 Rp7.500
7 26200-09J10-000 GEAR ASSY,KICK STARTER DRIVEN (NT:9) 1 Rp101.500
8 26300-40J00-000 LEVER ASSY,KICK STARTER 1 Rp68.000
9 26314-33G20-000 BOLT,KICK STARTER LEVER 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
