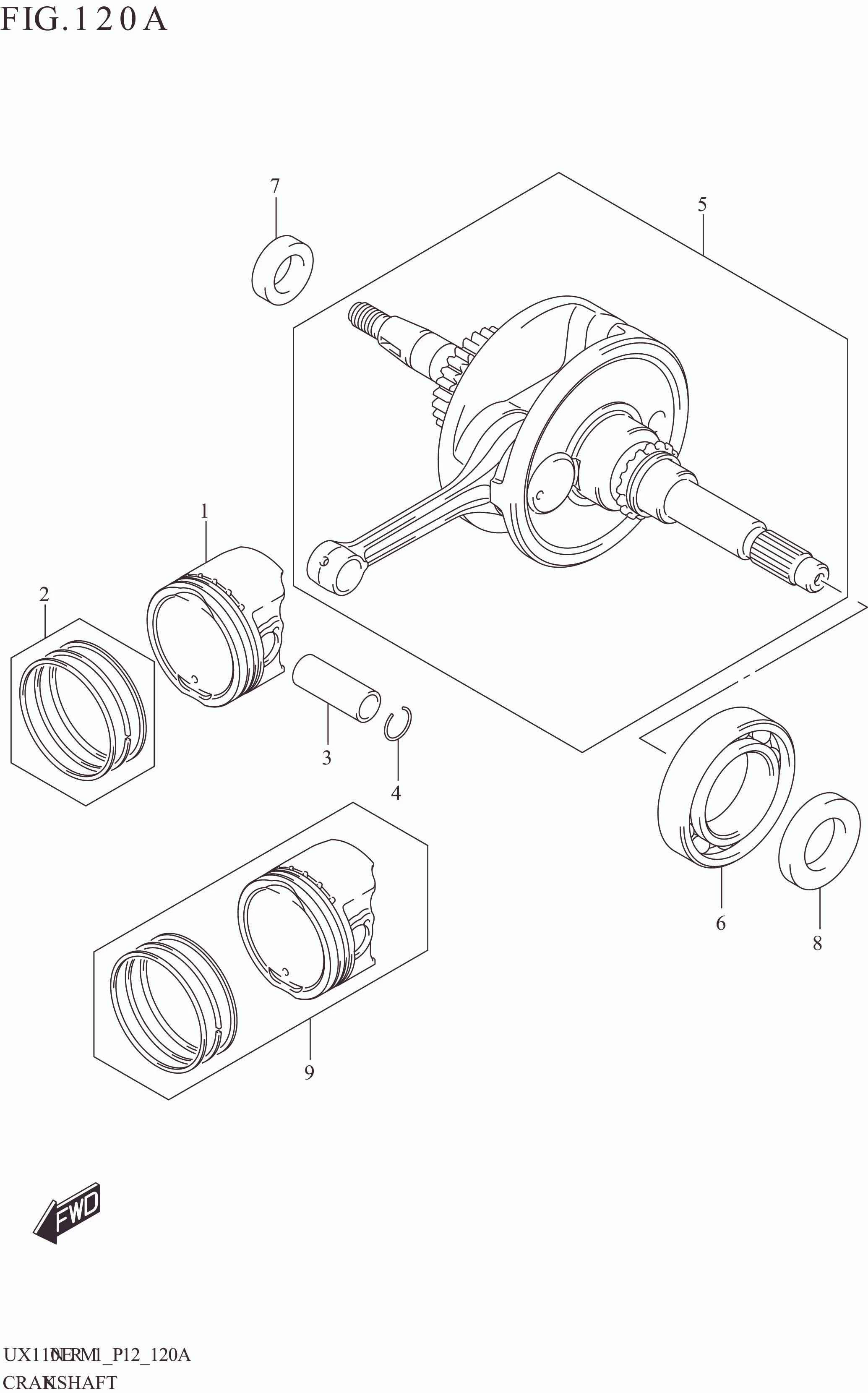

FIG. 120A CRANKSHAFT

FIG. 120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111-40J00-0F0
SUB: 12111-09J10-0F0		 PISTON 1 Rp90.000
2 12140-22J00-0F0
SUB: 12140-22J00-000		 RING SET,PISTON 1 Rp43.000
3 12151-09J10-000 PIN,PISTON 1 Rp7.500
4 09381-13001-000 CIRCLIP 2 Rp3.000
5 12200-09JF0-000
SUB: 12200-09JE1-000		 CRANKSHAFT ASSY 1 Rp778.000
6 09262-35L10-000 BEARING (35X62X14) 1 Rp57.500
7 09283-16010-000
SUB: 09283-16L03-000		 SEAL,CRANKSHAFT OIL RH (20.5X32X5) 1 Rp17.500
8 09283-22035-000
SUB: 09283-22L03-000		 SEAL,CRANKSHAFT OIL,L (22X38X6) 1 Rp16.500
9 DISCONTINUE
SUB: 12100-09J20-050		 PISTON SET (OS:0.5) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
