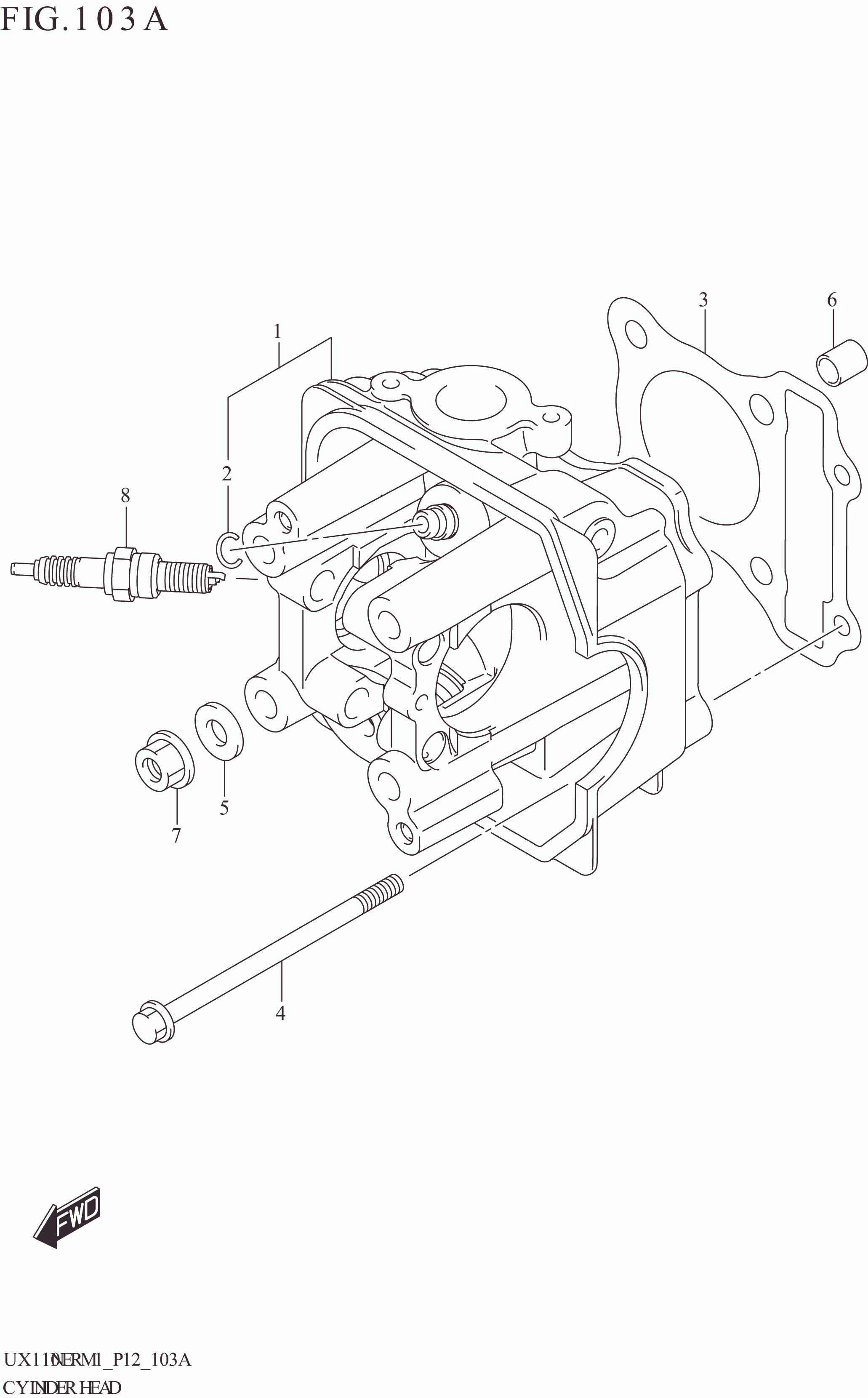

FIG. 103A CYLINDER HEAD

FIG. 103A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11110-09J70-000 HEAD,CYLINDER 1 Rp889.000
2 09381-10004-000 .SNAP RING (10X85) 2 Rp3.000
3-1 11141-09J10-000 GASKET,CYLINDER HEAD 1 Rp17.500
3-2 11141-09J10-000
SUB: 11141-09J50-000		 GASKET,CYLINDER HEAD 1 Rp17.500
4 09103-06501-000 BOLT (6X100) 2 Rp9.000
5 09160-08164-000 WASHER (8.5X18X2.3) 4 Rp6.500
6 09206-10016-000 PIN (8.2X10X13) 2 Rp3.500
7 08316-1008A-000 NUT 4 Rp3.500
8-1 09482-00621-000 PLUG,SPARK (CPR7EA-9) 1 Rp24.000
8-2 09482-00627-000 PLUG,SPARK (U22EPR9) 1 Rp17.000
8-3 09482-00620-000 PLUG,SPARK (CPR6EA-9) 1 Rp29.000
8-4 09482-00622-000 PLUG,SPARK (CPR8EA-9) 1 Rp24.500
8-5 09482-00626-000 PLUG,SPARK (U20EPR9) 1 Rp20.500
8-6 09482-00628-000 PLUG,SPARK (U24EPR9) 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
