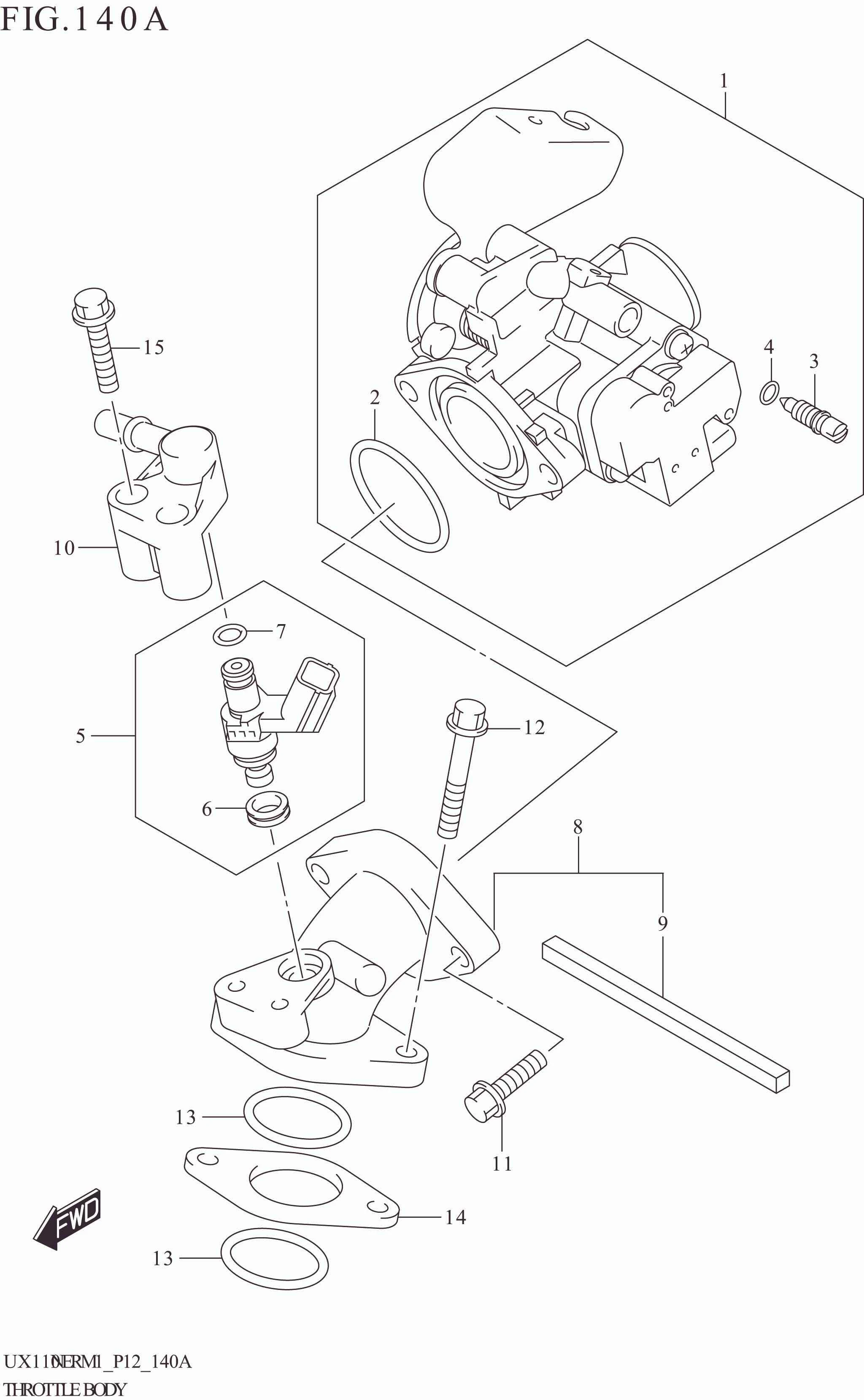

FIG. 140A THROTTLE BODY

FIG. 140A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-49K01-000 BODY ASSY,THROTTLE 1 Rp699.000
2 13295-16HA0-000 .O-RING 1 Rp5.000
3 13662-22J00-000 .ADJUSTER,BAS 1 Rp12.000
4 13453-36F00-000 .O RING 1 Rp20.500
5 15710-39JA0-000 INJECTOR ASSY,FUEL 1 Rp196.000
6 15722-21H00-000 .RING,SEAL 1 Rp9.000
7 15721-26J00-000 .O-RING 1 Rp5.500
8 13110-49K00-000 PIPE,INTAKE 1 Rp88.000
9 13112-39JB0-000 .CUSHION,INTAKE PIPE 1 Rp13.500
10 15830-39JA0-000 JOINT,FUEL HOSE 1 Rp35.500
11 01547-0625A-000 BOLT 2 Rp6.500
12 01547-0630A-000 BOLT 2 Rp6.500
13 09280-26011-000 O-RING (D:2.4,ID:25.7) 2 Rp8.000
14 13128-40JA0-000 INSULATOR,INTAKE PIPE 1 Rp9.500
15 01547-0635A-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
